Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

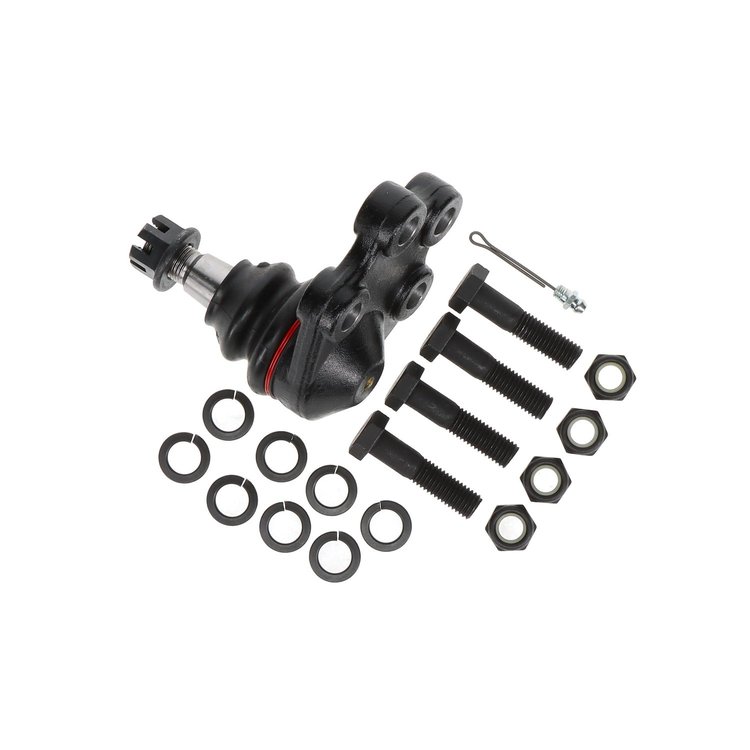

- Front Lower Suspension Ball Joint Assembly
Part TypeBall Joint
BrandACDELCO
Package Height4.0
Package Width5.1
Package Length2.75
Weight3.16 PG
Part CategoryReplacement Parts
Grease Fitting IncludedYes
PositionFront Lower
Stud Tapered End 1 Diameter0.898
Mounting Bolts IncludedYes
Mounting Hole Quantity4
Friction Material Attachment356
Mounting TypeBolt-In
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Tire wear: as ball joints wear, they allow the front wheels of your vehicle to point outward and away from each other in a 'toe-out' position. This position will result in uneven wear on one side of your tire that feathers across the tread toward its center. Worn ball joints may also be signaled by a more extreme variation of uneven tire wear, called camber wear, where the tire leans in or out at the top, and a hard line of excess wear is seen along one edge of your vehicle's tire.
Mounting Bolt Thread Pitch (Mm)1.75
Dust Boot IncludedYes
Greasable (Y/N)Yes
Mounting Bolt Length2.26
Good Maintenance Practices - Section 1 - Bullet 1Use new components during installation. If you replace your vehicle's ball joints, make sure to use new mounting hardware, rather than reusing the old.
Faq - Answer 3Yes. Installing new ball joints can interfere with the alignment of your vehicle, so a full four-wheel vehicle alignment is recommended following ball joint replacement.
Dust BootYes
Washers IncludedYes
Faq - Answer 2Yes. You should replace your ball joints as a set to make front end alignment easier.
Ball Joint AssemblyYes
Meets Or Exceeds Original Equipment ManuYes
Mounting Bolt Thread Diameter (Mm)12
Faq - Answer 1Yes. ACDelco Advantage Chassis parts are for both GM and non-GM vehicle applications.
Distance Between Mounting Holes (In)1.34 / 2.36
Good Maintenance Practices - Section 1 - Bullet 2Avoid replacing only one ball joint at a time. If you choose to replace a ball joint, you should consider replacing ball joints as a set to make alignment easier.
Good Maintenance Practices - Section 1 - Bullet 3Installing a new ball joint can interfere with the alignment of your vehicle. Perform a full four-wheel vehicle alignment after any ball joint replacement.
Suspension Grade TypeStandard
Features & Benefits - Bullet 2Greaseable where applicable
Features & Benefits - Bullet 3Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage
Castle Nut IncludedYes
Features & Benefits - Bullet 4Economical value with dependable quality
Features & Benefits - Bullet 5For General Motors vehicles as well as most makes and models
Product DescriptionACDelco Silver (Advantage) Suspension Ball Joints are a quality, high value alternative for General Motors vehicles as well as most makes and models and are backed by General Motors. These suspension ball joints connect your vehicle's control arm to its steering knuckle, and feature a polychloroprene (neoprene) dust boot on most applications, and one-piece housing. It also includes studs and all hardware. ACDelco Silver (Advantage) parts are a good choice for many vehicles on t he road today. Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1Manufactured at ISO 9001-certified facilities
Stud Thread Pitch (Mm)1.50
Good Maintenance Practices - Section 1 - HeaderInspect or have your ball joints inspected for signs of wear. Over time, lubrication inside the ball joint can dry out, leading to joint wear. Even sealed ball joints can be exposed to air, and if the ball joint's protective boot is damaged, dirt and debris could further harm the function and life of the joint. Exposure to harsh driving conditions like pot holes, bumpy road surfaces, or road salt may also cause ball joints to fail. Worn ball joints could result loss of vehicle control or tire damage. Inspect your ball joints regularly, following exposure to events that may harm the component, or when you experience signs of ball joint wear.
Cotter Pin IncludedYes
ColorBlack
Mounting Hardware IncludedYes
Stud Type"Tapered, Threaded"
MaterialSteel
Cotter Pin HoleYes
Stud Tapered End 2 Diameter0.730
AdjustableNo
TypeBolt On
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Alignment issues: an inability to set your vehicle's alignment to proper specifications may be a sign of ball joint wear.
GreaseableYes
Stud Thread Diameter (Mm)16
Part FitmentDirect Fit
Faq - Question 3Should I perform a vehicle alignment after installing ball joints?
Bushings IncludedNo
Grade TypeStandard Replacement
Faq - Question 2Should I replace my ball joints as a set?
Faq - Question 1Can I use ACDelco Advantage Chassis parts on my non-GM vehicle?
Vendor Part Number46D2271A
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
