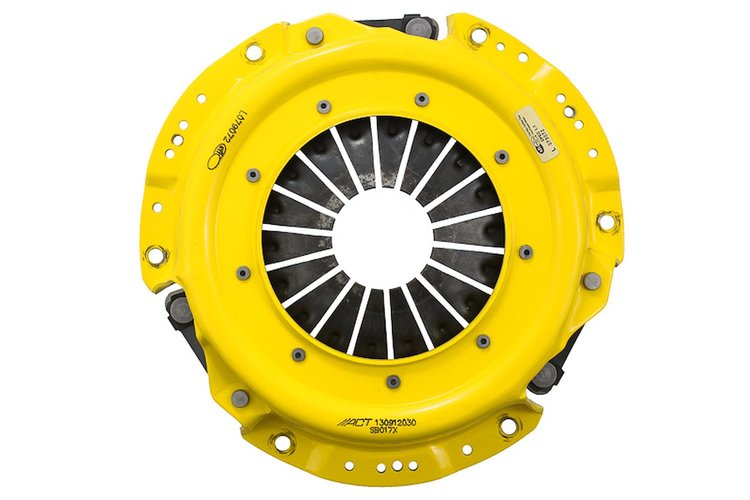

ACT Clutch SB017X Features:

SB017X is an ACT Xtreme pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc.

• Moderate To Heavy Pedal Effort
• Positive Engagement; Available Life Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered For Improved Durability
• Precisely Assembled
• Accurately Balanced; Recommended For Street And Race Use; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 10.9 lbs.
• SFI: 1.1
• Type: Xtreme
• Diameter: 8.8 in.
• Diameter: 225 mm

ACT Clutch SB017X Notes:

• Must be used with ACT flywheel and disc. Pressure plate bolts included (M8-1.25 x 16mm).
