Vehicle Info NeededAEM ELECTRONICSPART NUMBER: 017-30-0334

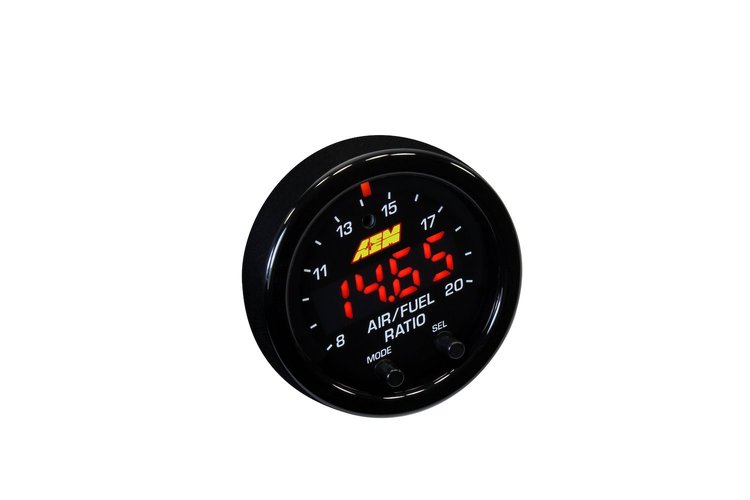

X-Series OBDII Wideband AFR Gauge Kit 30-0334
$29995
More than 10 available
Ships Today
Lowest Price GuaranteeGauges
X-Series OBDII Wideband AFR Gauge KitBody Color: Black Face Shape: Round Grade Type: Performance / Professional Wiring Harness Length: 96 in. / 48 in. Mounting Hardware Included: Yes
This wideband AFR gauge reads air/fuel ratio straight off the factory OBDII CAN-bus stream, letting a piggyback tuner or open-source tuning software see real air/fuel data without adding its own AEMnet wiring.
X-Series OBDII Wideband Gauge Features:
- Includes an OBDII pass-through connector and Bosch 4.9LSU sensor.
- Patented X-Digital technology for the fastest response time in independent testing against 17 competing controllers.
- Programmable OBDII address, ECU number, PID, message identifier and bit rate from the gauge face.
- Optional 0-5V or RS232 output for a separate data logger.
- Validated with DiabloSport, EFILive, HP Tuners and DashDaq tuning software.
Part TypeGauge
BrandAEM ELECTRONICS
Package Height5.3
Package Width5.4
Package Length5.5
Weight1.45 PG
Part CategoryGauges & Tachs
Product TypeGauge
Part FitmentUniversal Fit
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
