Vehicle Info NeededK-Type Closed-Tip EGT Sensor Kit [Pair]
Ships on Sep 02, 2026

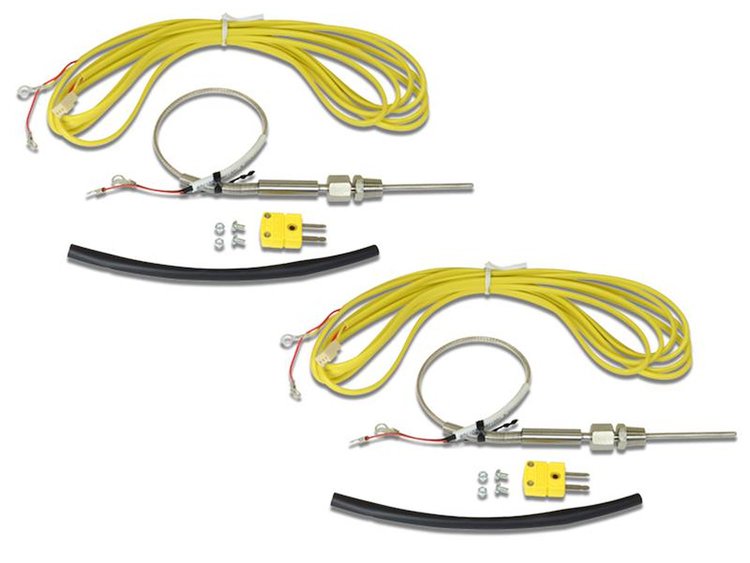

Lowest Price GuaranteeAEM 30-2068-2 K-Type Closed-Tip EGT Sensor Kit provides fast-response temperature measurement for exhaust gas and other high-temperature monitoring applications. The closed-tip thermocouple design and protective Inconel sheaths provide durability for demanding environments, while the included extension harnesses and compression fittings simplify installation.
AEM Electronics 30-2068-2 Features:
- K-Type closed-tip thermocouple sensor design
- 1800 degree F maximum temperature rating
- Inconel protective sheaths
- 1/8 in. NPT compression fittings
- Suitable for monitoring exhaust gas temperature [EGT]
- Can also be used for cylinder head, pre- and post-intercooler, air, water, fluid, and disc brake temperature monitoring
- Designed for temperature viewing and data logging applications
- Compatible with AEM CAN EGT Module applications
AEM Electronics 30-2068-2 Includes:
- 2 K-Type closed-tip thermocouple sensors
- 2 Inconel sheaths
- 2 1/8 in. NPT compression fittings
- 2 10 ft. extension wiring harnesses
- Ring and terminal hardware
8-Channel K-Type EGT CAN Modules transmit temperature channels to a CD Carbon Digital Dash or 3rd Party programmable CAN devices from up to eight K-Type thermocouple sensors via a one-plug CAN bus connection. Out of the box, it connects to AEM's CD Digital Dashes and can be configured to send information to almost any CAN-based device that has programmable CAN bis capability.
This K-Type EGT CAN Module can be used to log and view various temperature readings including exhaust gas temperature, cylinder head temperature, inlet and outlet intercooler temperatures, intake air temperatures, various fluid temperatures such as oil and water, disc brake temperatures, and many more. With the ability to daisy chain to a second module 8-Channel K-Type EGT CAN Module, users can receive up to 15 temperature channels through the same CAN bus connection!
