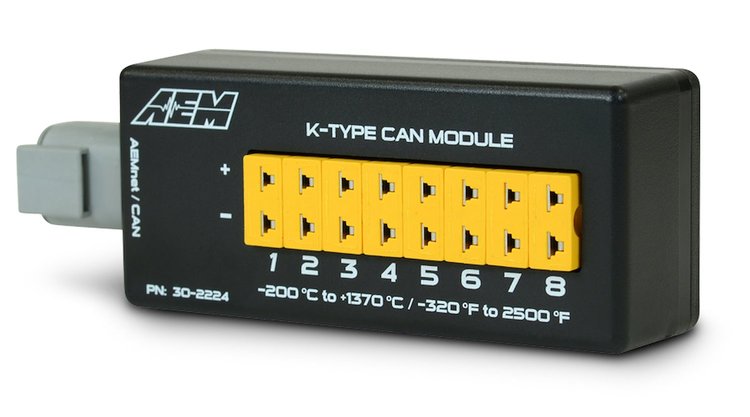

8-Channel K-Type Exhaust Gas Temperature (EGT) CAN Module
InfoVehicle Info Needed
AEM ELECTRONICSPART NUMBER: 017-30-2224

8-Channel K-Type Exhaust Gas Temperature (EGT) CAN Module

$46695$519.95You Save$53.00
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Steel Weld Fitting 1/8" NPT Female

JEGS

Steel Weld Fitting 1/8" NPT Female

Part Number : 555-16250
$639$6.99
You Save$0.60
K-Type Closed Tip EGT Thermocouple w/1/8 in. NPT Compression Fitting & 10 ft. Extension Harness [Inconel Sheath]

AEM ELECTRONICS

K-Type Closed Tip EGT Thermocouple w/1/8 in. NPT Compression Fitting & 10 ft. Extension Harness [Inconel Sheath]

Part Number : 017-30-2068
$11155$123.95
You Save$12.40
K-Type Closed Tip EGT Thermocouple 2-Pack w/1/8 in. NPT Compression Fitting [Inconel Sheath]

AEM ELECTRONICS

K-Type Closed Tip EGT Thermocouple 2-Pack w/1/8 in. NPT Compression Fitting [Inconel Sheath]

Part Number : 017-30-2068-2
$22395$249.95
You Save$26.00
K-Type Closed Tip EGT Thermocouple 4-Pack w/1/8 in. NPT Compression Fitting [Inconel Sheath]

AEM ELECTRONICS

K-Type Closed Tip EGT Thermocouple 4-Pack w/1/8 in. NPT Compression Fitting [Inconel Sheath]

Part Number : 017-30-2068-4
$40395$449.95
You Save$46.00

K-Type Modules

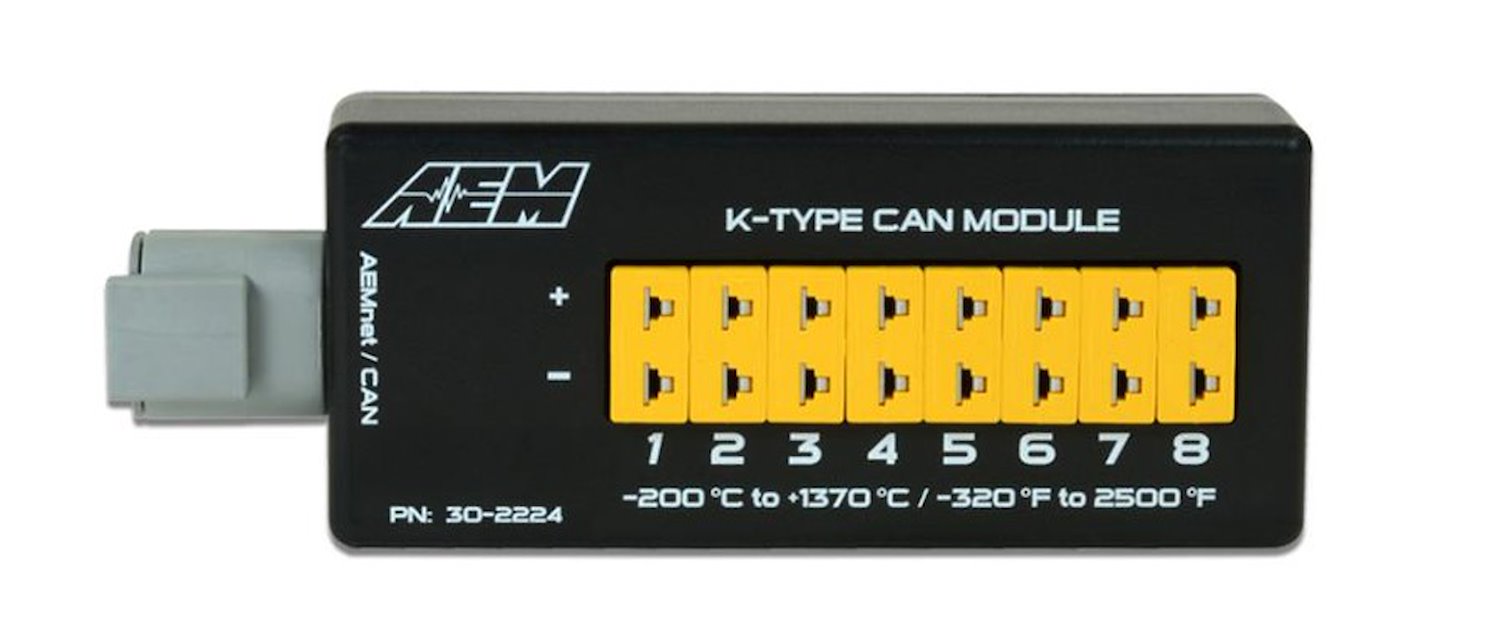

8-Channel K-Type EGT CAN Module
  • (8) K-Type Thermocouple Inputs
  • One-Plug CAN Bus Connection
  • -328-2501 Degrees Fahrenheit Range
  • Can also be Used for Air or Engine Temperature
  • Temperature Probes not Included
  • Sold Individually

    AEM 30-2224 8-Channel K-Type EGT Module Features:

    • Accepts common K-type thermocouple sensors such as 017-30-2068 (sold separately) or equivalent
    • Connect 2 modules together for up to 16 temperature inputs through a single plug
    • Pre-configured AEMnet CAN bus for connection to AEM Digital Dashes (sold separately)
    • Cold junction compensated for accuracy
    • Measures temperatures from -328 to 2501 degrees Fahrenheit (-200 to 1372 degrees Celsius)
    • Temperature resolution of 32.18 degrees Fahrenheit (0.1 degrees Celsius)
    • Open circuit and fault detection
    • Includes: EGT CAN Module, 4-Pin DTM-style connector harness and plug, instructions, and Velcro for mounting

    Notes:

    • Not Compatible with Infinity, Series 2, or AQ-1
    • Requires 4-Way Electrical Connector Kit 017-35-2626 for Connection to Non-AEM Devices
    • 8-Channel K-Type EGT CAN Modules transmit temperature channels to a CD Carbon Digital Dash or 3rd Party programmable CAN devices from up to eight K-Type thermocouple sensors via a one-plug CAN bus connection. Out of the box, it connects to AEM's CD Digital Dashes and can be configured to send information to almost any CAN-based device that has programmable CAN bis capability.

      This K-Type EGT CAN Module can be used to log and view various temperature readings including exhaust gas temperature, cylinder head temperature, inlet and outlet intercooler temperatures, intake air temperatures, various fluid temperatures such as oil and water, disc brake temperatures, and many more. With the ability to daisy chain to a second module 8-Channel K-Type EGT CAN Module, users can receive up to 15 temperature channels through the same CAN bus connection!

    Part TypeData Acquisition Module
    Product LineAEM K-Type Thermocouples and Module
    BrandAEM
    Package Height3.4
    Package Width4.3
    Package Length7.8
    Weight0.51 PG
    Part CategoryPerformance Parts
    TypeK-Type
    Channel8
    WarningCalifornia Proposition 65
    Data Acquisition Component UseExhaust Gas Temperature (EGT)
    Emission Code5
    QuantitySold individually
    WarrantyManufacturer's 1 Year Warranty
    Temperature Thermocouple (Probe) IncludedNo
    Terminal GenderMale Female
    Data Acquisition Component TypeTemperature sensor
    Part TypePyrometer Module
    CategoryGauges and Gauge Accessories
    Product TypeHarness
    Sub CategoryControl Modules
    Connector GenderMale Female
    Part FitmentUniversal
    Grade TypeProfessional
    Vendor Part Number30-2224
    Package Qty1
    Package TypeEA
