CD-7 Display Channels & Setup

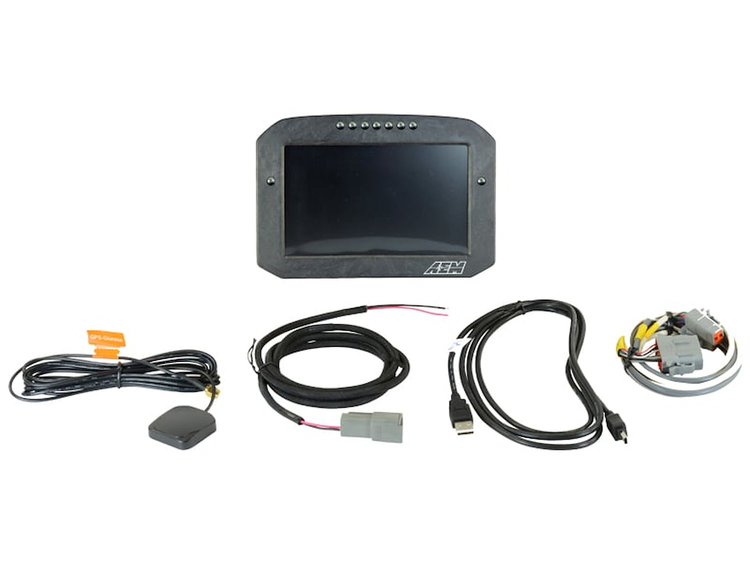

AEM 30-5702F CD-7FG Carbon Flat Panel Non-Logging/GPS Display Features:

• Onboard 20 Hz GPS receiver and antenna
• Available Vehicle Dynamics Module for the onboard GPS 30-2206 (sold separately) will provide a 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping, and lap timing
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side

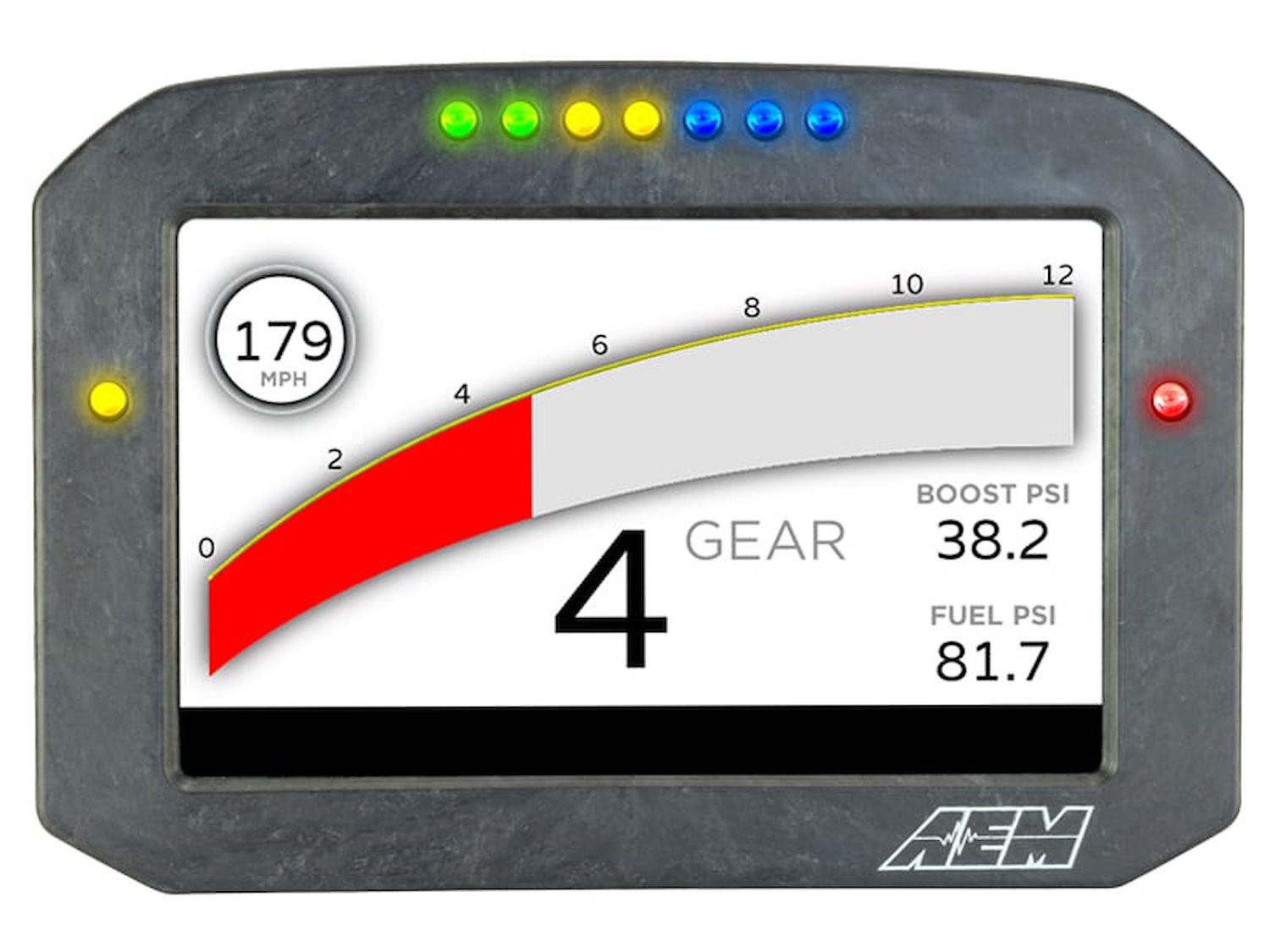

• Seven programmable pages including four main pages, alarm, on-change, and start-up pages with button kit 30-3610 (sold separately)
• Programmable dedicated alarm page quickly identifies problems
• On-change page can be used to identify map switching for boost, traction, or lap times
• Included page layouts to input channels and text, or customize with included graphics editor software
• Odometer function
• Over 200 fully programmable SAE and custom warning icons
• Headlight-in connection dims the dash and LEDs lights during night operation
• (2) extra switch inputs included for displaying user-triggered events
• Convert CAN bus channel values to user-defined text
• Compatible with OBD II factory ECUs using CAN Adapter Cable 30-2217 (sold separately)
• Install on carbureted and pre- OBD II ECU-equipped vehicles using a 22-channel CAN Sensor Module 30-2212 or 6-channel CAN Sensor Module 30-2226 (sold separately)
• (8) additional temperature inputs with 8-channel K-Type EGT CAN Module 30-2224 (sold separately)
