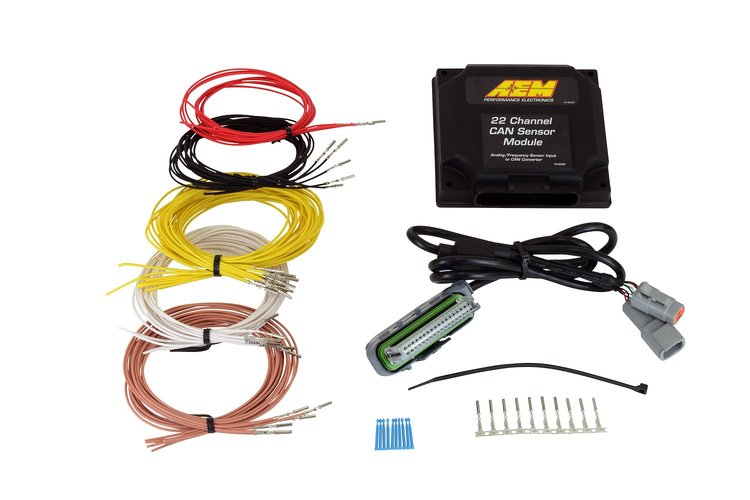

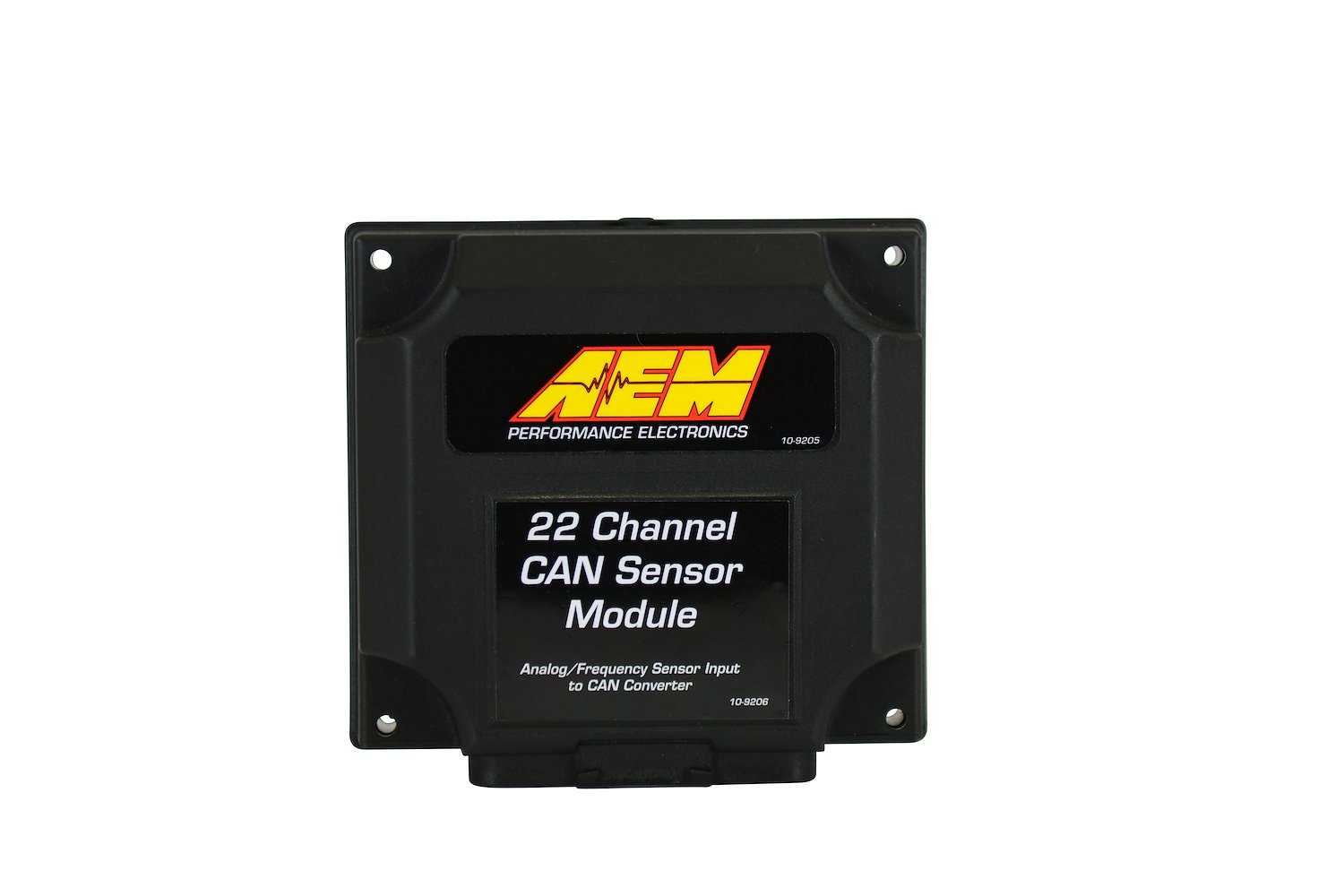

AEM 30-2212 CAN Sensor Module Features:

• Enable the use of AEM Digital Racing Dashes on carbureted vehicles
• Add more inputs and channels on EFI equipped vehicles without multiple CAN-based devices
• Converts analog, digital, and frequency-based inputs
• Multiple modules can be put in series to add additional channels
• IP65-rated for dust and water contamination
• Pre-Wired CAN cable and 36 in. wiring harness included
• Jumper selectable CAN bus speeds, terminating resistor, and header length
