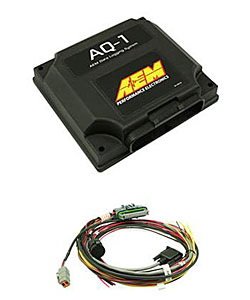

Vehicle Info NeededAQ-1 Universal Data Logger Kit Includes: AQ-1 Universal Data Logger
Ships on 11/04/2026
Lowest Price Guarantee- AQ-1 Universal Data Logger Kit
- AQ-1 Universal Data Logger
- AQ-1 Universal Wiring Harness
Kit Includes: - AEM AQ-1 Universal Data Logger - 017-30-2500
- AEM AQ-1 Universal Wiring Harness - 017-30-2906-18
Includes:
AEM's AQ-1 Data Logger is an easy-to-use vehicle data acquisition device designed for racers and performance enthusiasts of all types who want dynamic, accurate data logging capability, but don't want to take a second job to pay for it. Knowledge is power, and the information stored in the AQ-1 Data Logger can help users improve a vehicle's tuning and set up, and their own driving ability. With easy to use software, lightning fast logging rates, extra-large memory, and unbeatable affordability, the AQ-1 Data Logger is the perfect choice for any user whether a novice or professional race team.
Show More
FAST & EASY TO USE AEM's AQ-1 Data Logger is simple to operate and packed with features but won't break the bank. With logging rates of up to 1000HZ (1000 samples/second) per channel, the system is one of the fastest on the market, and with 2GB of logging memory standard it's also one of the largest. Additionally it features an internal 3-axis accelerometer, a removable SD card for virtually unlimited logging (up to 32GB at a time), and includes an available RS-232 serial input for adding an NMEA GPS device. The AEM sensor wizard makes setup and configuration a snap. Log files are generated for use with AEMLog, AEM's proven software analysis program.
LOG USING ANALOG INPUTS or AEMnet The AQ-1 Data Logger includes three switched to ground digital inputs, four 0-5V analog inputs with optional pull up resistor for RTD/Thermistor-style sensors, four additional analog inputs that can optionally be used to measure RPM or other frequency-based signals, and AEMnet (the new high speed communications network that links enabled AEM products together) capability for direct connection to a 4-Channel UEGO Controller, AEM Series2 EMS or other future AEMnet enabled devices. System voltage is logged automatically and the 3-axis accelerometer is internal which frees up 2 inputs to be used for other sensors.
SIMPLE INSTALLATION & SETUP AEM's AQ-1 Data Logger has an optional 18" flying lead harness (part# 30-2906-18) with a weatherproof connector and labeled wires for easy installation. Its compact size makes it easy to install (4.80" x 4.55" x 1.44"), and its rugged enclosure features a weather resistant dust cover for added durability. The AQ-1 Data Logger interfaces via USB connection to a laptop, and the included software is easy to use with detailed configuration screen and a comprehensive AEM sensor library to simplify setup and operation.
