Vehicle Info NeededHigh-Flow Belt Drive Fuel Pump
Lowest Price Guarantee- High-Flow Belt Drive Fuel Pump
- Over 11 gpm @ 100psi
- Inlet Port: -16 an
- Outlet Port: -12 an
- Gasoline, E85, and Methanol/Ethanol Compatible
- flows in excess of 4500 lbs/hr
- supports around 5000 HP with gas
- supports around 2500 HP with methanol
- features removable ports

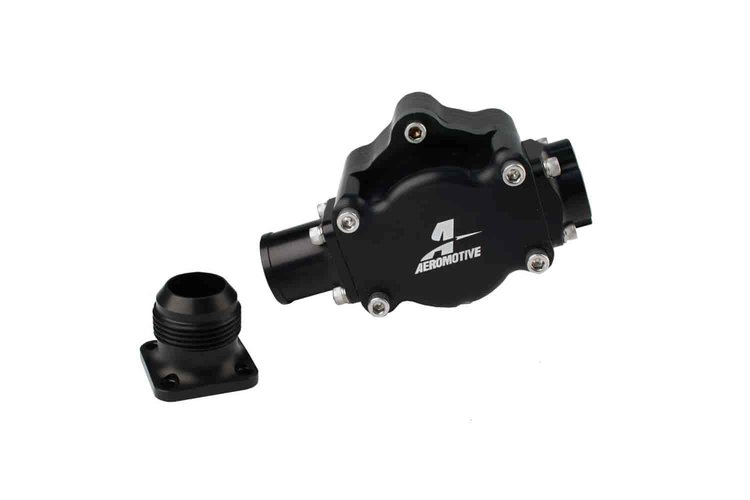

12 GPM Belt Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol, or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low-pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators. Sold Separately: Mounting Bracket (P/N 11706).
The Big Block Chevy Belt Drive Kit can produce 2 to 200 psi with enough volume to support a 2500 HP Big Block Chevy. Designed to mount lower left (modification required to mount on right).
Kit Includes:
- Fuel pump 027-11105 (below)
- Pump pulley & crank pulley
- Billet drive mandrel & cog belt
Show More
- Mounting bracket, adjustment shims, and hardware if needed, compatible regulators for the kit are sold separately:
- EFI applications use regulator 027-13113
- Carbureted gasoline applications use regulator 027-13202 or 027-13212
- Carbureted alcohol applications use 027-13209 or 027-13214
The Big Block Chevy Belt Drive Fuel System guarantees unmatched pressure control and precise, accurate, repeatable, reliable fuel delivery for carbureted methanol or ethanol vehicles. It includes kit 027-17241 (above) and regulator 027-13209. Matched components maximize performance & consistency. Idle pressure can be adjusted separately from high-RPM settings without other jets, pills, or valves.
Billet Fuel Pumps are designed to solve fuel delivery problems in high-HP carbureted gasoline, carbureted methanol, or EFI applications. Available standard or high-flow with belt or hex drive, all billet fuel pumps are lightweight and compact. Standard pumps have ORB-10 ports and 3600 HP gas/1800 HP methanol ratings. High-flow pumps have removable ports with 1.25" inlet/-12AN O-ring outlet and 7000 HP gas/2500 HP methanol ratings. Hex units can be mounted and driven directly from the back of a properly prepared external oil pump or by the cam via timing cover adapter. They use a 3/8" hex drive shaft and adjustable billet collar with 3-bolt mounting pattern and hardware. Aeromotive Billet Fuel Pumps are also E85 compatible.
The Belt Drive Fuel Pump Kit is designed to provide the do-it-yourselfer with the components necessary to correctly install a full-on Aeromotive fuel system: fuel pump 027-11105 (below), universal billet collar bracket, and 28-tooth cog-driven pulley. The bracket allows pump mounting on the left or right of the damper. Compatible with carbureted or fuel-injected engines from 250 to 2000 horsepower.
Items You Need
AEROMOTIVE
Pro Series In-Line Fuel Filter -12AN O-Ring Inlet/Outlet Ports
Part Number : 027-12310
AEROMOTIVE
Part Number : 027-12310
