Stealth Fuel Cell & A1000 Fuel Pump 15 gallons

Vehicle Info Needed

AEROMOTIVEPART NUMBER: 027-18660

Stealth Fuel Cell & A1000 Fuel Pump 15 gallons

Name: Stealth Fuel Cell & A1000 Fuel Pump 15 gallons
Brand: AEROMOTIVE
SKU: 027-18660
Price: 1340.61 USD
Availability: OutOfStock

^$1,340⁶¹$1489.57You Save$148.96

2 left in stock

Lowest Price Guarantee

Fuel Cells With A1000 Fuel Pump

Stealth Fuel Cell & A1000 Fuel Pump

15 gallons

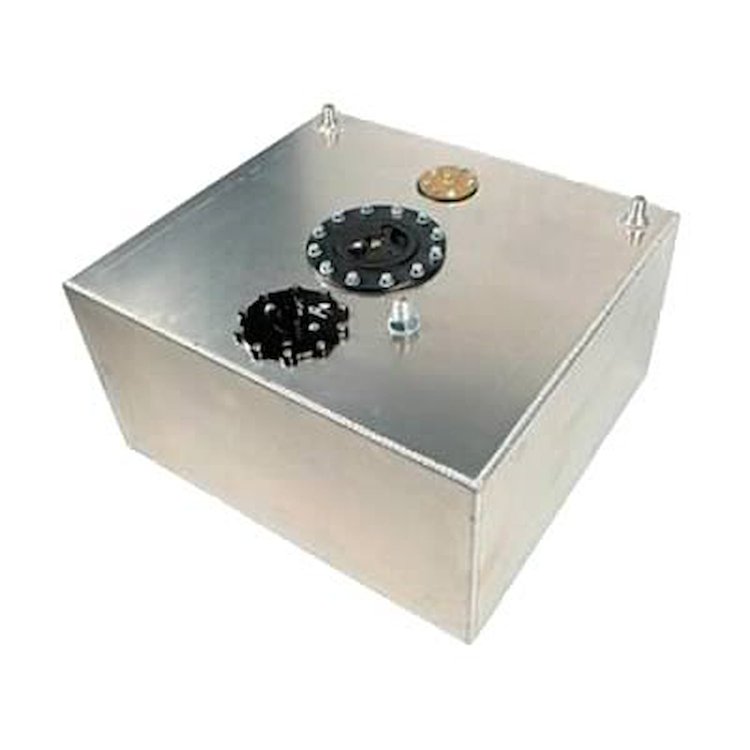

Stealth Fuel Cell

All-Aluminum Construction
15-gallon Capacity
20" wide x 18" long x 10" tall
Tig Welded Natural Finish
Flush Mount Lid Assembly
Two -8AN Rollover-Proof Vents
Universal 0-90 ohm Fuel Level Sending Unit
-8AN Return fitting for bypass line from regulator
Built-in 100-micron Stainless Steel Pre-Filter

Aeromotive A1000 Fuel Pump with capability to support:
Fuel Injected Engines

Naturally Aspirated: Up to 1300 HP
Forced Air Induction: Up to 1000 HP

Carbureted Engines

Naturally Aspirated: Up to 1500 HP
Forced Air Induction: Up to 1200 HP

For carbureted applications, use Regulator 027-13204
For EFI applications, use Regulator 027-13101 or 027-13109

aluminum stealth fuel cell

15 gallons

fitted with an A1000

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeFuel Cell

BrandAEROMOTIVE

Package Height13.6

Package Width21.4

Package Length22.2

Weight27.45 PG

Part CategoryPerformance Parts

Sending Unit IncludedNo

Outlet Fitting Size-10 AN

Universal Or Specific FitUniversal

Tip Over Valve Size-8 AN

SumpNo

Fuel Cell ColorNatural

ColorGray

Vent Fitting Size-8 AN

Filler Neck AttachedNo

QuantitySold individually

Overall Length18 in (457.2 mm)

Mounting Hardware IncludedNo

Fuel Cell MaterialAluminum

Outlet Fitting QuantityOne

FoamNo

Return Fitting Size-8 AN

Capacity (Lbs.)15

Capacity15 gallons

Sender Ohm Range0 ohms empty, 90 ohms full

Part FitmentUniversal

Grade TypePerformance

Vendor Part Number18660

Package Qty1

Package TypeEA
