AEROSPACE COMPONENTSPART NUMBER: 026-AC-C400FP

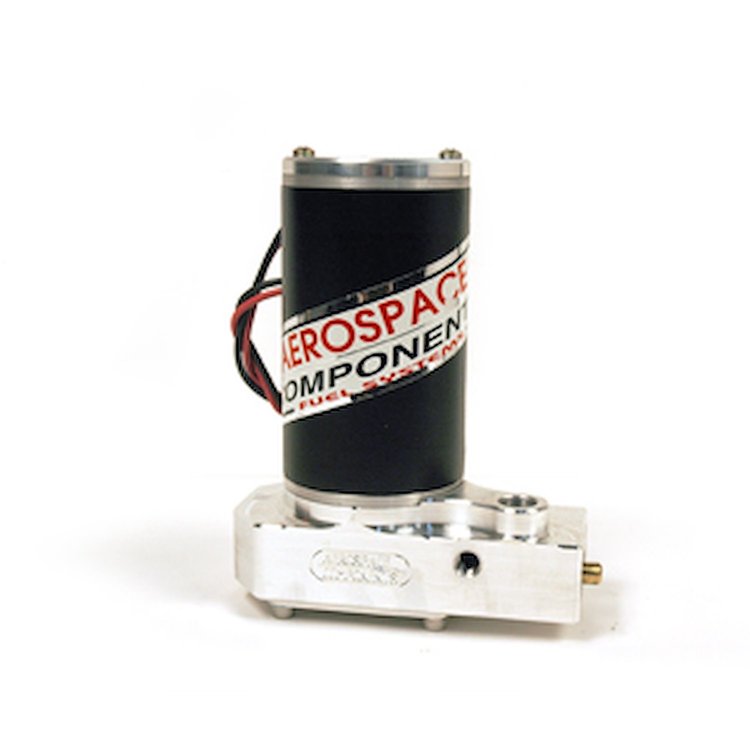

Comp 400 Fuel Pump Flows Over 400 GPH
$70000
Items You Need
Fuel Pumps
- Comp 400 Fuel Pump
- Flows Over 400 GPH
- Designed for Engines up to 850HP
- Line Pressure Range: 14-25 PSI
- Draws 9.5 Amps
Made of billet aluminum and hard anodized for longevity, these Aerospace Components Fuel Pumps can be adjusted while running with no fuel mess.
Features
- Billet Aluminum Housing & Billet Aluminum Mounting Bracket
- Hard Coat Anodized Billet Aluminum Impeller
- Bright Machined Finish
- Replaceable Delrin Wear Ring
- External Line Pressure Adjustment
- Can Be Adjusted While Running without Mess
- Adjustable Line Pressure Range
- High-Carbon Brushes for Long Life, Low Amp Draw, and High Torque
- High-Performance Double Lip Shaft Seal
- Every Pump Tested for Flow/Pressure/Leaks before Leaving Manufacturer
JEGS Easy Kits are designed by JEGS professionals to help you get all the performance parts you need.
Part TypeFuel Pump
Product LineAerospace Components Fuel Pumps
BrandAEROSPACE COMPONENTS
Package Height8.4
Package Width8.5
Package Length8.6
Weight7.21 PG
Part CategoryPerformance Parts
Outlet Size-10 AN O-ring
Maximum Pressure (Psi)25
Inlet Size-10 AN O-ring
Outlet AttachmentFemale Threads
Outlet QuantityOne
QuantitySold individually
Inlet QuantityOne
Inlet AttachmentFemale Threads
Free Flow Rate400 gph
Vendor Part NumberAC-C400FP
Package Qty1
Package TypeEA
