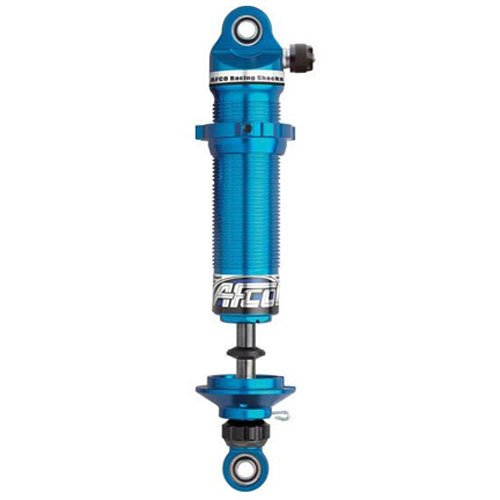

Big Gun X Double Adjustable Twin Tube Coil-Over Shock
InfoVehicle Info Needed
AFCOPART NUMBER: 921-3860BGX

Big Gun X Double Adjustable Twin Tube Coil-Over Shock

$52999
ShippingShips on 11/27/2026
Lowest PriceLowest Price Guarantee

Items You Need

Adjustable Spanner Wrench

AFCO

Adjustable Spanner Wrench

Part Number : 921-20110
$6399
Universal Billet Spanner Wrench Set Removable Teeth

JEGS

Universal Billet Spanner Wrench Set Removable Teeth

Part Number : 555-81802
$3199$35.99
You Save$4.00
Spanner Wrench Fully Adjustable

ALDAN AMERICAN SHOCKS

Spanner Wrench Fully Adjustable

Part Number : 038-ALD-1
$4095
Shock Adjusting Tool [Coil-Over Shocks Up To 3.25 In. Dia., Finger Indents, Cast Steel]

MOROSO

Shock Adjusting Tool [Coil-Over Shocks Up To 3.25 In. Dia., Finger Indents, Cast Steel]

Part Number : 710-62030
$4899

Twin Tube Shocks
    Big Gun X Double Adjustable Coil-Over Shock
  • 6" Stroke
  • 13" Compressed Length
  • 18.92" Extended Length
  • 12-14" Suggested Spring Height
  • 14.75"-16.75" Suggested Ride Height

The Big Gun X Double Adjustable Twin Tube shocks are specifically valved for high horsepower drag radial tire equipped applications. Drag radial competitors require a unique valving package to control the rear suspension and properly apply the radial tire to the track. Superior traction is achieved through a high flow piston that delivers consistent performance, pass after pass. If you have 1,000 - 1,500 horsepower and are on a drag radial tire, this is the valving package you need to complement your race program.

Show More

Features:

  • Double Adjustable - broadest range of adjustment in industry
  • Big Gun X Valving - specifically valved for high horsepower applications: S/O, NPS, Ultra Street, and Quick 8
  • Great for BIG or SMALL tire door slammers
  • Rebuildable and Revalvable
  • Body Mount: 1/2" I.D. Bearing 1" wide
  • Shaft Mount: 1/2" I.D. Bearing 1" wide
Part TypeCoilover Shock
Product LineAFCO Big Gun X Twin Tube Coil-Over Shocks
BrandAFCO
Package Height3.4
Package Width5.9
Package Length20.3
Weight4.9 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
