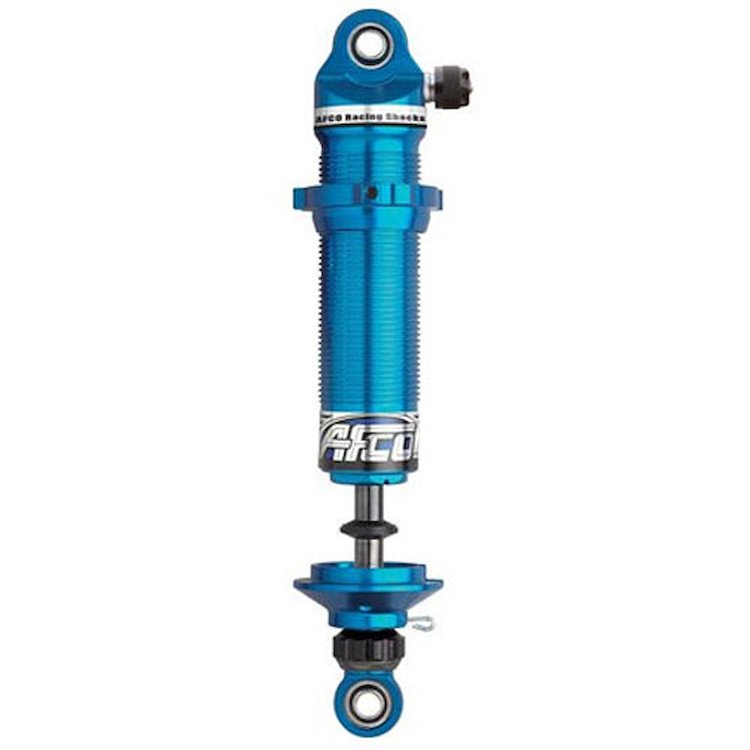

Big Gun X Double Adjustable Twin Tube Coil-Over Shock
Items You Need
- Big Gun X Double Adjustable Coil-Over Shock
- 7" Stroke
- 14" Compressed Length
- 20.92" Extended Length
- 14" Suggested Spring Height
- 15.50"-18.50" Suggested Ride Height
The Big Gun X Double Adjustable Twin Tube shocks are specifically valved for high horsepower drag radial tire equipped applications. Drag radial competitors require a unique valving package to control the rear suspension and properly apply the radial tire to the track. Superior traction is achieved through a high flow piston that delivers consistent performance, pass after pass. If you have 1,000 - 1,500 horsepower and are on a drag radial tire, this is the valving package you need to complement your race program.
Show More
Features:
- Double Adjustable - broadest range of adjustment in industry
- Big Gun X Valving - specifically valved for high horsepower applications: S/O, NPS, Ultra Street, and Quick 8
- Great for BIG or SMALL tire door slammers
- Rebuildable and Revalvable
- Body Mount: 1/2" I.D. Bearing 1" wide
- Shaft Mount: 1/2" I.D. Bearing 1" wide
