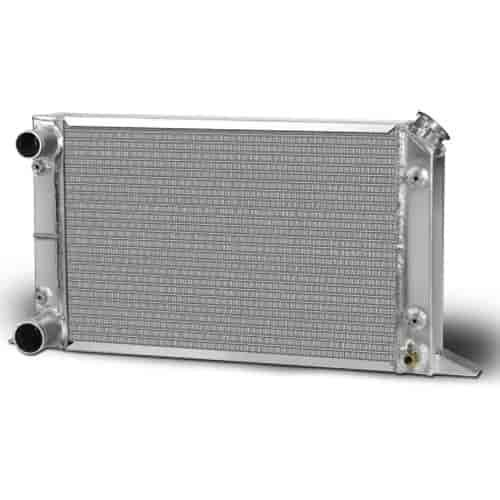

Scirocco-Style Lightweight Drag Race Radiator

Name: Scirocco-Style Lightweight Drag Race Radiator
Brand: AFCO COOLING
SKU: 923-80105LWN
Price: 809.99 USD
Availability: InStock

^$809⁹⁹

Ships on 09/08/2026

Lowest Price Guarantee

Lightweight Double Pass Radiators

Universal
Width:21-1/2"
Height: 12-5/8"
Thickness: 2"
Inlet: 1-1/2" Left
Outlet: 1-3/4" Left
Filler Neck: Right

AFCO offers several versions of the popular “Sirocco-style” radiator. These radiators are 12-5/8” high x 21-1/2” wide and are available in configurations for Chevy, Ford, and Chrysler applications. The all-aluminum furnace brazed core design (no epoxy) provides maximum cooling protection for the most demanding door-slammers. These radiators have 100% TIG-welded tanks and brackets. The Lightweight (LWN) versions remove 4 pounds from the nose of the car while keeping the same cooling performance. #80104NFAN is a fan/shroud kit that bolts up perfectly to the 1/4” bungs. N models have 2 rows of 1” tubes and the LWN models have 1 row of 1.5” tubes.• Double pass for maximum cooling in a compact, lightweight package.• Lightweight versions remove 4 lbs. from the nose of the car!• Sturdy TIG-welded 2” “foot” mounts.• Four 1/4” - 20 mounting bungs.• Stainless hardware & drain included.• No epoxy construction.• 100% TIG-welded.

Maximum Cooling Performance

AFCO Drag Racing Aluminum Radiators offer great fit and performance for even the most demanding racers. Each of these Scirocco-Style radiators is a dual-pass design and has an optimized fin count ratio for maximum cooling efficiency. All AFCO radiators feature TIG-welded tanks and brackets, as well as a furnace-brazed, sealed core without the use of epoxy. Every radiator is thoroughly tested before shipping to ensure you get impeccable quality parts. Stainless steel hardware and drain plug are included.

Part TypeRadiator

Product LineAFCO Drag Racing Aluminum Radiators

BrandAFCO COOLING

Part CategoryPerformance Parts

Part FitmentUniversal

Package Qty1

Package TypeEA
