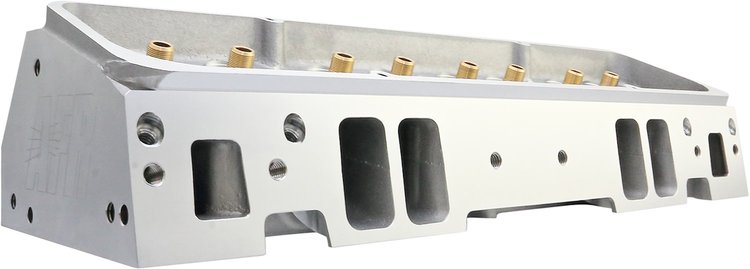

1002 Bare 195 cc Enforcer Cylinder Head for Small Block Chevy w/Straight Plugs
InfoVehicle Info Needed
AFR - AIRFLOW RESEARCHPART NUMBER: 033-1002

1002 Bare 195 cc Enforcer Cylinder Head for Small Block Chevy w/Straight Plugs

$35820$398.00You Save$39.80
ShippingShips on 10/08/2026
Lowest PriceLowest Price Guarantee

Chevy Small Block
Bare Enforcer Cylinder Head
  • 195cc Intake Port Volume
  • Straight Plug
  • 64cc Combustion Chamber
  • 23-Degree Valve Angle
  • As-Cast Ports
  • 3-Angle Valve Job
  • A356 Aluminum
  • Sold Individually

    AFR 1002 Enforcer Aluminum Head Features:

    • For 350 to 400 ci. engines operating below 6000 RPM
    • Intake Port Volume: 195 cc
    • Intake Port Dimension: 2.080 in. H x 1.270 in. x 5/16 in. Radius
    • Intake Port Location: Stock
    • Exhaust Port Volume: 76 cc
    • Exhaust Port Dimension: 1.380 in. H x 1.420 in. W
    • Exhaust Port Location: Stock
    • Valve Cover Bolt Pattern: Perimeter Bolt
    • Valve Spring Pocket Diameter: 1.580 in. O.D
    • Max Valve Spring Pocket Machining: 1.600 in. O.D
    • Deck Thickness: .450 in.
    • Minimum Bore Diameter: 4.000 in.
    • Reduce Combustion Chamber Size by 1 cc by Flat-Milling .006 in. from the Deck Surface, Maximum Mill .048 in. to achieve 56 cc.
    • Spark Plug Dimensions: 14 mm x .750 in. with Gasket Seat Such as Autolite AR3924 or equivalent (sold separately)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Budget-Friendly Cylinder Heads with Accurate Ports

      The AFR Enforcer Cylinder Head offers a Permanent Mold “As-Cast” Technology surface feature that provides an exact port location to gain maximum performance. Enforcer cylinder heads (sold individually) are ideal for engines that operate below 6,000 rpm and are available in fully assembled or bare version configurations.

      Show More

      For builders seeking real gains without breaking the bank, the AFR Enforcer heads offer a premium-aluminum, street-capable design that bridges the gap between stock castings and full CNC race heads. These heads feature permanent-mold “As-Cast” surfaces in the intake, exhaust, and combustion chambers—delivering consistent port geometry, repeatability, and solid performance right out of the box.

      The AFR Enforcer SBC heads (Small Block Chevy) are particularly compelling, with 195 cc intake runners, 2.020-inch stainless intake valves, 1.600-inch exhaust valves on 8 mm stems, and flow specs reaching 251 cfm intake and 197 cfm exhaust at .600″ lift. These heads support hydraulic roller or street-style mechanical cams up to .600″ lift and RPM levels in the 6,000+ range without compromise.

      One big advantage is the parts set included in the fully assembled units: ARP rocker studs, PAC/AFR dual springs, Viton seals, hardened spring seats, adjustable guide plates, bead-lock valve locks, ductile iron seats, and stainless valves. In other words, you get hardware that matches many AFR premium heads—just without paying for porting you may not yet need.

      Whether you're building a 350, 400, or stroker SBC under 6,000 rpm, these heads deliver impressive value. With reliable flow, durable components, and budget-conscious pricing, they’re ideal for street cars, mild race cars, or anyone who wants to upgrade from tired OEM heads without overspending.

      The AFR 195 Enforcer heads are one of the most popular configurations—assembled, straight-plug, and ready to bolt on (sold per head). These heads give you the performance jump you want, now, without the cost or lead time of fully exotic CNC heads.

    Part TypeCylinder Head
    Product LineAFR Enforcer Cylinder Heads
    BrandAFR - AIRFLOW RESEARCH
    Package Height6.4
    Package Width9.7
    Package Length21.5
    Weight47.37 PG
    Part CategoryPerformance Parts
    Cylinder Head MaterialAluminum
    Intake Port LocationStandard
    Exhaust Valves IncludedNo
    Locks IncludedNo
    Retainers IncludedNo
    Lock StyleN/A
    Guideplates IncludedNo
    Rocker Arms IncludedNo
    Oiling StyleThrough pushrod
    Cylinder Head FinishNatural
    Valve Seats MachinedYes
    Intake Valve Angle23 Degree
    Valve Springs IncludedNo
    Spark Plug StyleStraight
    Valve Seat Machine Style3-angle
    Valve Guides IncludedYes
    Cnc-Machined Intake RunnerNo
    Intake Valves IncludedNo
    Combustion Chamber StyleHeart
    QuantitySold individually
    Valve Stem Seals IncludedNo
    Accessory Bolt Holes DrilledYes
    Exhaust Port LocationStandard
    Combustion Chamber Volume (Cc)64
    Exhaust Valve Angle23 Degree
    Steam Holes DrilledNo
    Rocker Arm Studs IncludedNo
    Cylinder Head StyleBare
    Part FitmentSemi Universal
    Valve Cover Mounting StylePerimeter
    Valve Stem Seal StyleN/A
    Retainer MaterialN/A
    Intake Runner Volume (Cc)195
    Cnc-Machined Exhaust RunnerNo
    Cnc-Machined Combustion ChamberNo
    Vendor Part Number1002
    Package Qty1
    Package TypeEA
