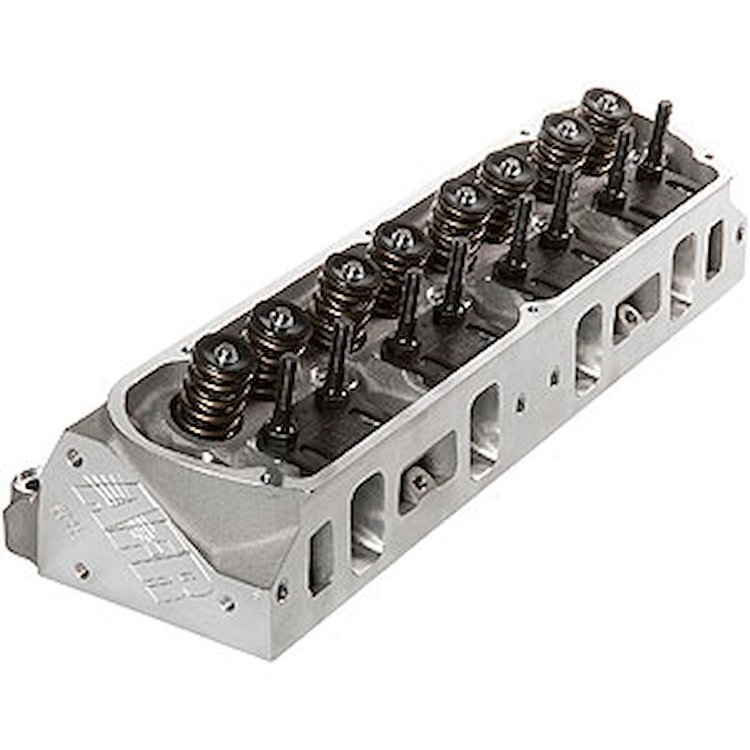

205cc Renegade Race Aluminum Cylinder Heads
• SB-Ford
• 58cc Combustion Chambers
• 205cc Intake Ports
• 7/16'' Rocker Arm Studs
• Sold in Pairs, 2/pkg.




  Small Block Ford 205cc Renegade Basic Package Components
  100% CNC Ported Combustion Chambers
  100% CNC Ported Exhaust Ports
  100% CNC Ported Intake Ports
  Competition 5-Angle Valve Job
  Intake Valve, 2.080' x 5.006' o.a.l.
  Exhaust Valve, 1.600' x 5.024' o.a.l.
  1.550' OD Solid Roller Dual Valve Spring, 225 lbs. on seat, .710' maximum lift, max RPM 7200-7400
  10º Manley 4140 Chrome Moly Steel Retainers
  10º Valve Locks
  7/16' Rocker Studs
  Adjustable 5/16' Guide Plates
  Viton Valve Seals
  Hardened Spring Cups
  Intake Valve Seats
  Exhaust Valve Seats
  Bronze Valve Guides
  Small Block Ford 205cc Renegade Race Head Specifications
  Head Torque w/Moly Lube	100 Ft. Lbs. with 1/2' Stud
  Rocker Stud Torque	55 Ft. Lbs.
  Intake Port Gasket, 1.280' x 2.100' w/ 3/8' radius	Fel-Pro 375-1262 - DO NOT PORT MATCH Intake Manifold to Fel-Pro Gasket.
  Exhaust Port Gasket	Fel Pro 375-1487
  Head Gasket	Fel Pro 375-1011-1
  Head Bolts & Studs	Standard ARP
  Head Bolt Washers	Manley Standard
  Stud Girdle	Standard
  Suggested Manifold	Victor Jr., Super Victor
  Spark Plug Starting Range	Autolite 3922
  Combustion Chambers	58cc
  Spring Pocket can be cut to 1.625, no deeper.
  Valve Spacing	Standard
  Rocker Arms	Standard, will not accept rail rocker arms
  Valve Angle	Standard
  Angle Mill (6cc Maximum Optional Mill)	.008' per cc
  Flat Mill (3cc Maximum Optional Mill)	.006' per cc

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
