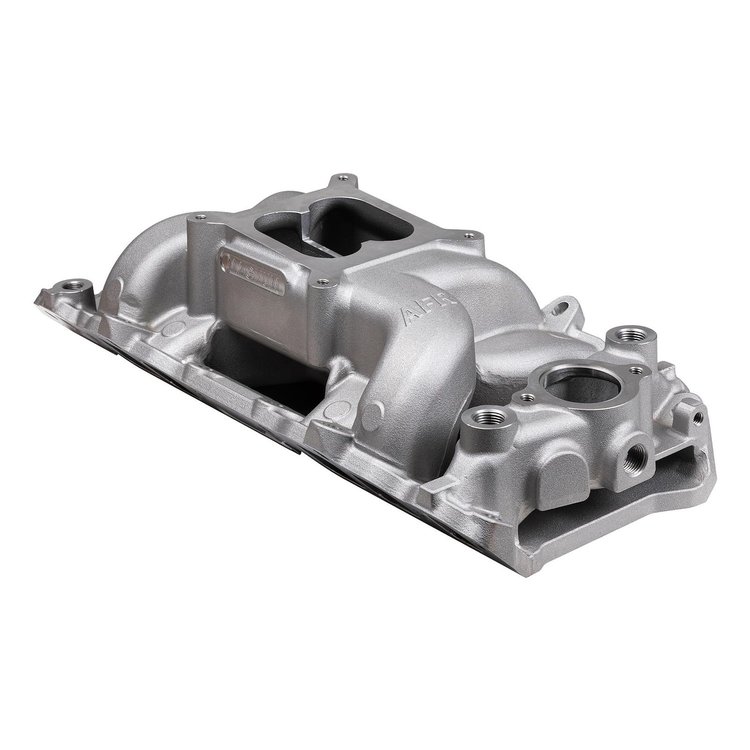

The AFR Magnum Dual-Plane Intake Manifold is engineered for performance Big Block Chevy engines with a standard 9.8 in. deck and oval-port cylinder heads. Its dual-plane runner design is tailored for strong street performance and high-horsepower applications across a broad 1,800-6,200 RPM operating range. The aluminum manifold is a direct bolt-on match for select AFR Magnum oval-port cylinder heads, helping reduce the need for port matching when paired with compatible 265cc, 290cc, or 300cc AFR heads.

AFR 4910 Features:

• Fits Big Block Chevy engines with a standard 9.8 in. deck
• Dual-plane intake manifold design
• Oval-port configuration
• Aluminum construction with natural finish
• 4150 carburetor flange
• Operating range: 1,800-6,200 RPM
• Custom-tailored runners for high-horsepower applications
• Sold individually

AFR 4910 Notes:

• Best fit for AFR Magnum 265cc, 290cc, and 300cc oval-port cylinder heads
• May require porting when matched to other cylinder heads
• Non-EGR design
