Made in USA

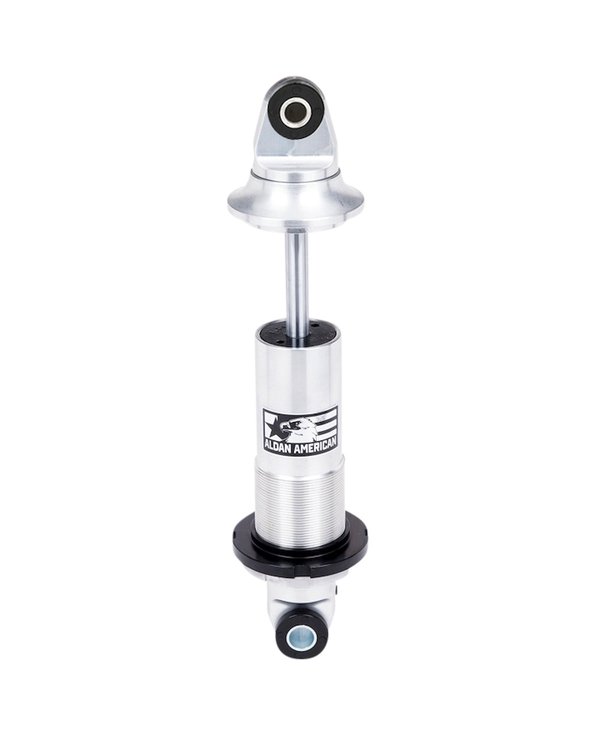

500 Series Coil-Over Shock Non-adjustable
Product Discontinued
ALDAN AMERICAN SHOCKSPART NUMBER: 038-AS-556

500 Series Coil-Over Shock Non-adjustable

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

500 Series Coil-Over-Single Shock Only
    500 Series Coil-Over Shock
  • Non-adjustable
  • Extended Length (in): 13
  • Collapsed Length (in): 9.5
  • Upper Mount: Bushing
  • Lower Mount: Bushing
  • Body Diameter (in): 2
  • Recommended Spring: 2.5" x 9"
  • Sold as Each

Aldan American has developed the 500 Series coil-over shock as a non-adjustable shock. These shocks are designed as a solution for builders looking for a bolt-in and go installation for their hot rod, classic truck or custom ride. The 500 Series was featured in Classic Trucks Magazine and is an excellent choice for street use or as a limited budget shock. The 500 series maintains the same Aldan American superior quality you expect, just less the adjustability feature.

Show More

Features:

  • Non-Adjustable Coil-Over
  • Nitrogen Charged
  • Adjustable Ride Height
  • 6061-T6 Body & Mounts
  • Factory Serviceable
  • 6061-T6 Hardware - Included
  • 2.5" I.D. Coil Springs (Sold Separately)
  • Four Stage Active Seal
  • Designed & Manufactured in Los Angeles, California. U.S.A.
Part TypeCoilover Shock
Product LineAldan American 500 Series Non-Adjustable Factory Set Valving Coil-Over Shocks
BrandALDAN AMERICAN SHOCKS
Package Height4.0
Package Width8.75
Package Length22.5
Weight3.0 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Coil-Over Springs IncludedNo
Number Of Valving SelectionsPreset
Gas ChargedYes
Bushing ColorBlack
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Compressed Length (In)9.5
Lower MountBushing
Coilover Shock TypeNon-adjustable
Shock Body FinishBillet
Upper MountBushing
Shock Body MaterialAluminum
Recommended Spring Diameter2.5 in (63.5 mm)
Body Diameter2 in (50.8 mm)
Ride Height11.5-12 in.
Recommended Spring Length9 in (228.6 mm)
Extended Length13 in (330.2 mm)
Threaded Adjustment Range3 in (76.2 mm)
Part FitmentSemi Universal
Internal DesignTwin-tube
Vendor Part NumberAS-556
Package Qty1
Package TypeEA
