Vehicle Info NeededALDAN AMERICAN SHOCKSPART NUMBER: 038-AS-658

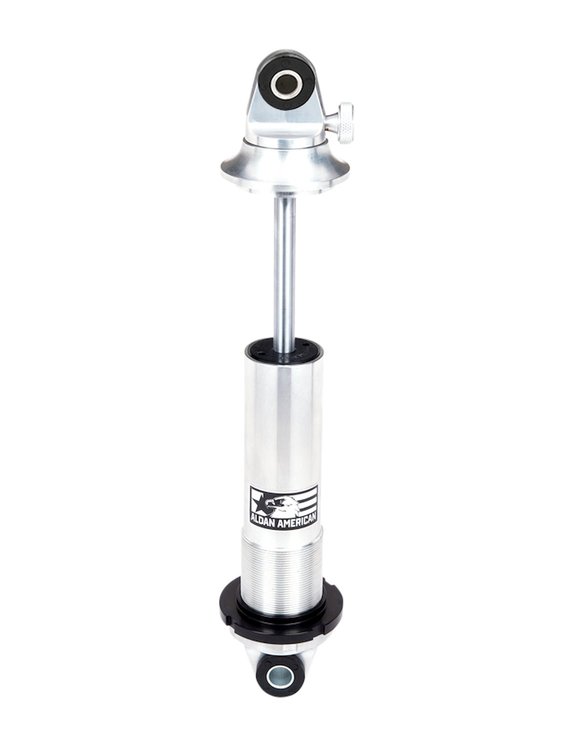

Phantom Series Coil-Over Shock Single-adjustable
$22316$247.95You Save$24.79
3 left in stock
Ships Tomorrow
Lowest Price GuaranteePhantom Series Coil-Over-Single Shock Only
- Phantom Series Coil-Over Shock
- Single-adjustable
- Extended Length (in): 16.5
- Collapsed Length (in): 11.5
- Upper Mount: Bushing
- Lower Mount: Bushing
- Body Diameter (in): 2
- Recommended Spring: 2.5" x 12"
- Sold as Each
11 Rebound Settings of Adjustment
Aldan American Phantom Series are rebound adjustable coil-overs that provide 11 Rebound Settings of adjustment, giving you the ability to control the rebound speed of your shocks (the rate at which the shock returns to its normal position after compressing). The Phantom Series of shocks is suggested for street performance, custom IFS or IRS applications as well as moderate track or drag racing use. Stud mount or Mustang II shock variants are offered as rebound adjustable shocks.
The Aldan Phantom Series Shocks are also available in Single Adjustable Coil-Over & Spring Combo Kits
Part TypeCoilover Shock
Product LineAldan American Phantom Series Single Adjustable Coil-Over Shocks
BrandALDAN AMERICAN SHOCKS
Package Height4.3
Package Width4.3
Package Length20.7
Weight5.01 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Coil-Over Springs IncludedNo
Number Of Valving Selections11
Gas ChargedYes
Bushing ColorBlack
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Compressed Length (In)11.5
Lower MountBushing
Coilover Shock TypeSingle-adjustable
Shock Body FinishBillet
Upper MountBushing
Shock Body MaterialAluminum
Recommended Spring Diameter2.5 in (63.5 mm)
Body Diameter2 in (50.8 mm)
Ride Height14-14.5 in.
Recommended Spring Length12 in (304.8 mm)
Extended Length16.5 in (419.1 mm)
Threaded Adjustment Range3 in (76.2 mm)
Part FitmentSemi Universal
Internal DesignTwin-tube
Vendor Part NumberAS-658
Package Qty1
Package TypeEA
