Vehicle Info NeededALDAN AMERICAN SHOCKSPART NUMBER: 038-PAS-654

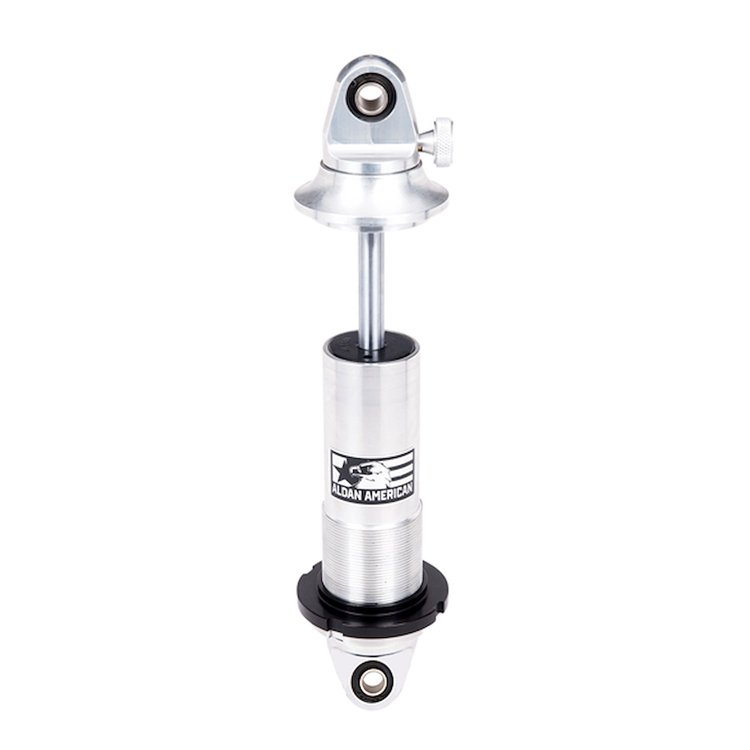

Phantom Series Coil-Over Shock Single-adjustable
$22766$252.95You Save$25.29
Ships on 09/08/2026
Lowest Price GuaranteePhantom Series Coil-Over-Single Shock Only
- Phantom Series Coil-Over Shock
- Single-adjustable
- Extended Length (in): 13.4
- Collapsed Length (in): 9.7
- Upper Mount: Bearing
- Lower Mount: Bearing
- Body Diameter (in): 2
- Recommended Spring: 2.5" x 10"
- Sold as Each
11 Rebound Settings of Adjustment
Aldan American Phantom Series are rebound adjustable coil-overs that provide 11 Rebound Settings of adjustment, giving you the ability to control the rebound speed of your shocks (the rate at which the shock returns to its normal position after compressing). The Phantom Series of shocks is suggested for street performance, custom IFS or IRS applications as well as moderate track or drag racing use. Stud mount or Mustang II shock variants are offered as rebound adjustable shocks.
The Aldan Phantom Series Shocks are also available in Single Adjustable Coil-Over & Spring Combo Kits
Part TypeCoilover Shock
Product LineAldan American Phantom Series Single Adjustable Coil-Over Shocks
BrandALDAN AMERICAN SHOCKS
Package Height4.3
Package Width4.3
Package Length18.6
Weight4.3 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Coil-Over Springs IncludedNo
Number Of Valving Selections11
Gas ChargedYes
Bushing ColorNatural
Bushing MaterialSteel
Adjustable Mounting Bracket IncludedNo
Compressed Length (In)9.7
Lower MountBearing
Coilover Shock TypeSingle-adjustable
Shock Body FinishBillet
Upper MountBearing
Shock Body MaterialAluminum
Recommended Spring Diameter2.5 in (63.5 mm)
Body Diameter2 in (50.8 mm)
Ride Height12-12.5 in.
Recommended Spring Length10 in (254 mm)
Extended Length13.4 in (340.36 mm)
Threaded Adjustment Range3 in (76.2 mm)
Part FitmentSemi Universal
Internal DesignTwin-tube
Vendor Part NumberPAS-654
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
