Made in USA
SS Series Coil-Over Shock Single-adjustable
InfoVehicle Info Needed
ALDAN AMERICAN SHOCKSPART NUMBER: 038-PAS-890

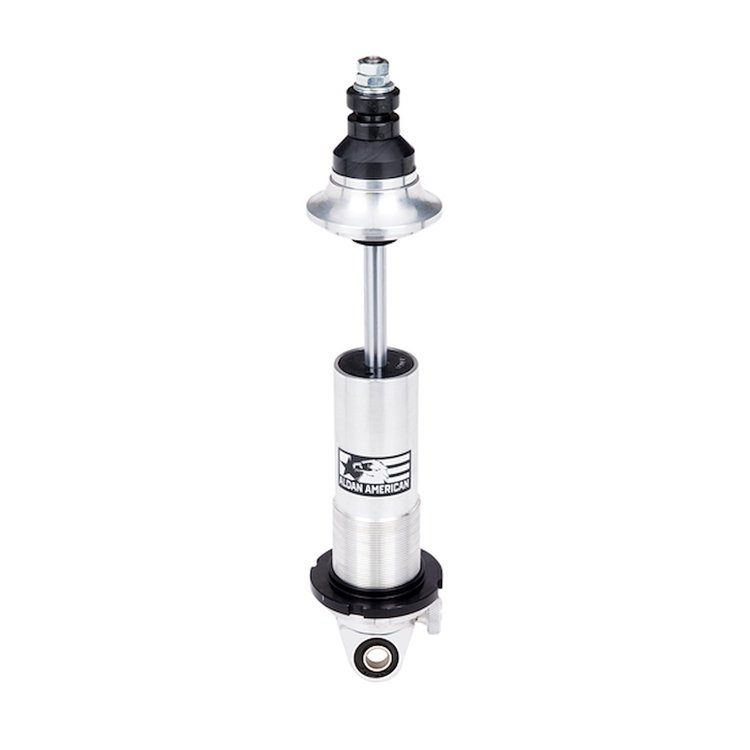

SS Series Coil-Over Shock Single-adjustable

$28295
ShippingShips Today
Lowest PriceLowest Price Guarantee

SS Series Shock-Single Shock Only
    SS Series Coil-Over Shock
  • Single-adjustable
  • Extended Length (in): 14.5
  • Collapsed Length (in): 10.15
  • Upper Mount: Bearing
  • Lower Mount: Bearing
  • Body Diameter (in): 2
  • Recommended Spring: 2.5" x 10"
  • Sold as Each

The Aldan American SS Series is built for GM Vehicles that require a stud mount coil-over. Providing 6 compression settings of adjustment, compression adjustment control will allow you to adjust the rate at which the shock compresses when pre-loading the rear wheel as well as how the rear end will handle going over various road surfaces. GM Series -Stud Mount shocks are most popular for early Corvettes, but can be used in any application requiring a coil-over shock.

Show More

Features:

  • Designed & Manufactured in Los Angeles, California. U.S.A.
  • 14.5" Coil-Over Shock: Single Adjustable (Compression Adjustable)
  • Nitrogen Charged
  • Adjustable Ride Height
  • 6061-T6 Body & Mounts
  • Factory Serviceable
  • 6061-T6 Hardware - Included
  • 2.5" I.D. Coil Springs (Sold Separately)
  • "AS" Models Include 5/8" Bushings (7/16", 1/2" and some Metric Sizes Available)
  • Four Stage Active Seal
Part TypeCoilover Shock
Product LineAldan American SS Series Single Adjustable Coil-Over Shocks
BrandALDAN AMERICAN SHOCKS
Package Height4.0
Package Width8.75
Package Length22.5
Weight4.0 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Coil-Over Springs IncludedNo
Number Of Valving Selections6
Gas ChargedYes
Bushing ColorNatural
Bushing MaterialSteel
Adjustable Mounting Bracket IncludedNo
Compressed Length (In)10.15
Lower MountBearing
Coilover Shock TypeSingle-adjustable
Shock Body FinishBillet
Upper MountStud
Shock Body MaterialAluminum
Recommended Spring Diameter2.5 in (63.5 mm)
Body Diameter2 in (50.8 mm)
Ride Height12.5-13 in.
Recommended Spring Length10 in (254 mm)
Extended Length14.5 in (368.3 mm)
Threaded Adjustment Range3 in (76.2 mm)
Part FitmentSemi Universal
Internal DesignTwin-tube
Vendor Part NumberPAS-890
Package Qty1
Package TypeEA
Please click here to download the instructions PDF file
