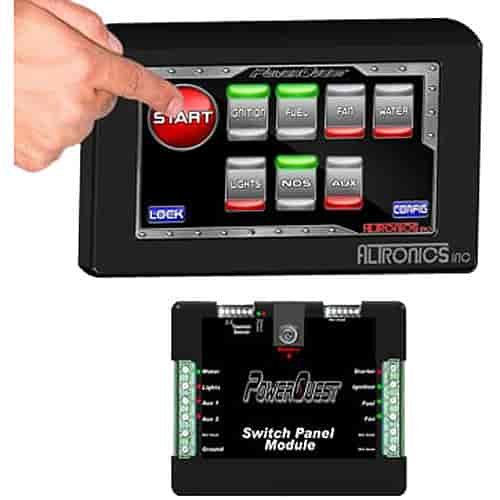

The Altronics PowerQuest combines a touch-screen switch panel and solid-state power distribution module to control electrical functions in race and performance vehicles without traditional rocker switches and replaceable fuses. Each channel can be programmed for current limit and switch behavior, while automatic functions can be configured to help simplify starting and accessory control.

Altronics ALT-PQSWP Features:

• 8-channel solid-state switch panel and power distribution system
• Each channel is user-configurable from 1-30 amps
• Resettable solid-state protection eliminates replaceable fuses
• Switches can be configured as momentary or toggle
• Automatic switches can be time delayed after the Start button is pressed
• Soft-start option helps reduce in-rush current
• Three trigger inputs for functions such as low oil pressure or lean-out warnings
• Touch screen can be operated while wearing gloves
• 12 V and 16 V compatible
• System setup is performed through the touch-screen display without a PC
• Programmable lock screen helps prevent unauthorized system access

Includes:

• 8 in. x 5 in. x 0.75 in. touch-screen display
• 6 in. x 5 in. x 1.25 in. switch panel module
• Water temperature sensor
• Wiring harness
