Breakdown of Included Items

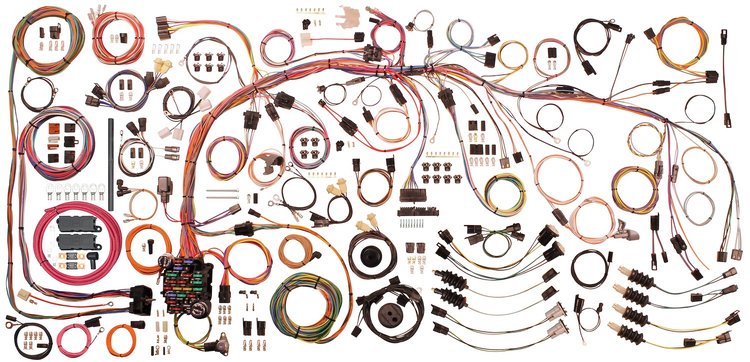

This Classic Update Series Kit completely modernizes a 1968-1976 Chevy Corvette's electrical system and provides the power options to expand with accessories.

510717 Features:

• ATO style fuse panel provided that mounts directly to the OEM opening
• All the stock dash and cluster connections are matched to the OEM spec, including routing, and can accommodate aftermarket accessories
• A high-powered accessory connection is also provided
• The electrical system is protected by a 175 amp Megafuse and 6-gauge alternator lead
• The "Cold Air Hood Door" and Turbo 4C kick-down (1973-1976) connections are included
• The wiring harness for the wiper and blower motor is included
• Windshield wiper switch, motor, pop-up door and relay wiring is included, with connectors to match
• Extra-long leads are included in the front lighting wiring for optional lighting locations
• Includes an ignition-switched trigger wire for an electric fan relay to run A/C
• The rear body harness connections for stop/tail-light, side and back-up lamps include the twist-in style sockets
• An instrument cluster harness disconnect is provided for easy access and servicing, as well as connections to the stock cluster and console.
• Assemblies for the under-dash courtesy light and door jamb switch are included
• New floor headlight dimmer switch is also provided
