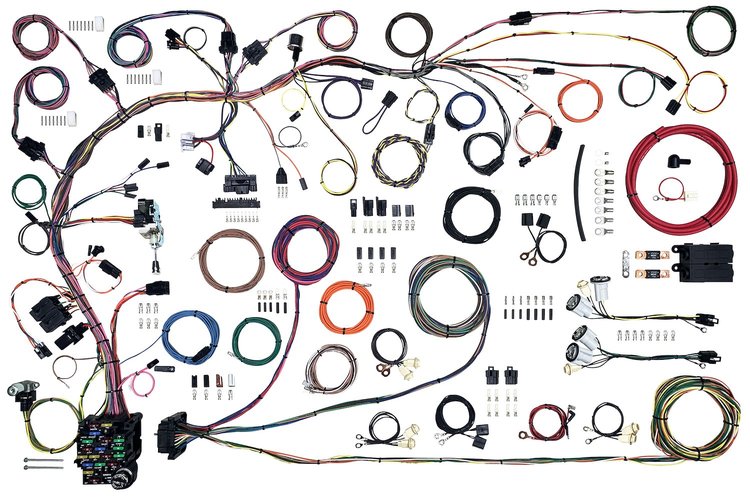

Breakdown of Included Items

American Autowire 510838 Wiring Kit Features:

• ATC-style fuse box and bulkhead assembly that mounts directly to the OEM firewall mounting location
• The dash and cluster connections are matched to OEM spec and can accommodate aftermarket accessories
• Terminals and printed circuit board connector for use with stock cluster
• The steering column connection is plug-and-play and will support most aftermarket columns with the included adapter and terminal set
• Factory-style under dash courtesy lamp assemblies work with the original dome and interior lighting feeds
• Tail, back-up and side marker lamp connectors attach to the factory rear lamps
• Plug-and-play heater switch, wiper/washer switch, blower resistor wiring, and motor connections
• Engine compartment wiring feed connections for the ignition coil, tachometer, water temperature, oil pressure, electric choke, 4WD warning lamp switch, starter solenoid, A/C compressor lead, electric fuel pump lead, alternator exciter feed, and neutral safety and backup feeds
• The electrical system is protected by a 175 amp Megafuse and 6-gauge alternator lead
• Factory-style headlight switch, fog lamp relays, and fog lamp switch connector
• Extra-long leads in the front lighting wiring for optional lighting locations
• Ignition-switched trigger wire for an electric fan relay

American Autowire 510838 Wiring Kit Notes:

• Accommodates only the use of a 1-wire alternator or GM SI-type internally regulated alternator - Optional adapters may be necessary for certain applications
• Does NOT have a resistance wire for a standard points-type ignition system, and is wired with a full 12-volt primary ignition feed

FAQ

What is the best wire to rewire a car?

• For rewiring a car, the best wire often depends on the specific needs of the vehicle and its electrical system. Generally, copper-core, stranded wires with appropriate insulation are preferred for their durability and conductivity.

How do you check for bad wiring in a car?

• To check for bad wiring in a car, visually inspect the wires for any signs of fraying, burning, or damage. Use a multimeter to test for continuity and resistance along the wires to identify any faults or breaks in the circuit.

How long does it take to replace wiring in a car?

• The time required to replace wiring in a car varies based on factors such as the complexity of the vehicle's electrical system and the extent of the wiring replacement. It can range from a few hours for simpler systems to several days for more intricate setups.

How do you extend automotive wires?

• To extend automotive wires, use appropriately sized wire splices or connectors and matching gauge wires. Cut the wire to be extended, strip the insulation, connect the new wire using crimps or soldering, and insulate the connection to ensure proper conductivity and safety.
