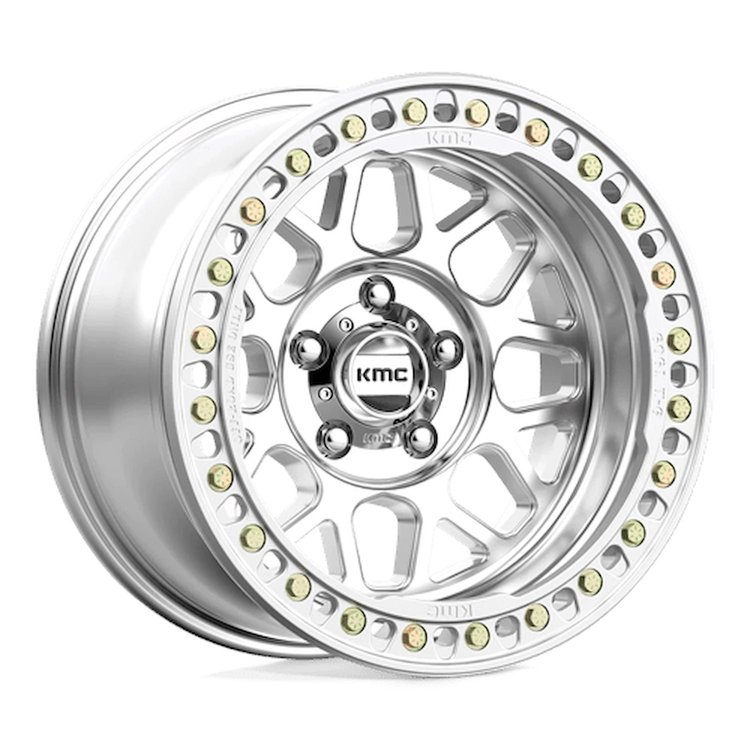

KM23578563500 KM235 GRENADE CRAWL Beadlock Wheel [Size: 17"x8.5"] Machined Finish

Vehicle Info Needed

AMERICAN RACINGPART NUMBER: 286-J000362

KM23578563500 KM235 GRENADE CRAWL Beadlock Wheel [Size: 17"x8.5"] Machined Finish

Name: KM23578563500 KM235 GRENADE CRAWL Beadlock Wheel [Size: 17"x8.5"] Machined Finish
Brand: AMERICAN RACING
SKU: 286-J000362
Price: 590.00 USD
Availability: InStock

^$590⁰⁰$695.00You Save$105.00

Ships on 09/15/2026

Lowest Price Guarantee

17 in. Diameter

KM235 GRENADE CRAWL Beadlock Wheel

Size: 17"x8.5"

Bolt Pattern: 6 x 135 mm

Backspace: 4.75"

Offset: 00 mm

Hub Bore: 87.1 mm

Load: 2500 lbs.

Finish: Machined

JEGS How to Measure Wheel Fitment: Click Here

American Racing Wheels KM23578563500 Features:

Wheel Diameter: 17 in.
Wheel Width: 8.5 in.
Lip Depth: 2.47 in.
Wheel Weight: 34.26 lbs.
Wheel Material: Cast Aluminum
TPMS Compatible: No
Certification: SAEJ2530
Center Cap Number: T163H140-6-H30-P1

Part TypeWheel

BrandAMERICAN RACING

Package Height9.5

Package Width17.0

Package Length18.0

Weight38.26 PG

Part CategoryAccessories

Wheel Size17 x 8.5 in.

Dot ApprovedNo

Load Rating (Lbs.)2500

Quantity1

Tpms CompatibleNo

Wheel MaterialCast Aluminum

Wheel FinishMachined

Functional BeadlockYes

Bolt Pattern6 x 135 mm

Back Spacing4.75 in.

Offset0 mm

Backspacing4.75 in.

Center Bore Diameter87.1 mm

Center Cap IncludedYes

Load Rating2500 lbs.

Wheel Bolt Pattern6 x 135 mm

Wheel Diameter17 in.

Wheel Offset00 mm

Part FitmentUniversal

Wheel Width8.5 in.

Vendor Part NumberKM23578563500

Package Qty1

Package TypeEA
