![KM23578580700 KM235 GRENADE CRAWL Beadlock Wheel [Size: 17"x8.5"] Satin Black Finish](https://www.jegs.com/images/mini_750/200/286/286-j000365.jpg)
Vehicle Info NeededAMERICAN RACINGPART NUMBER: 286-J000365

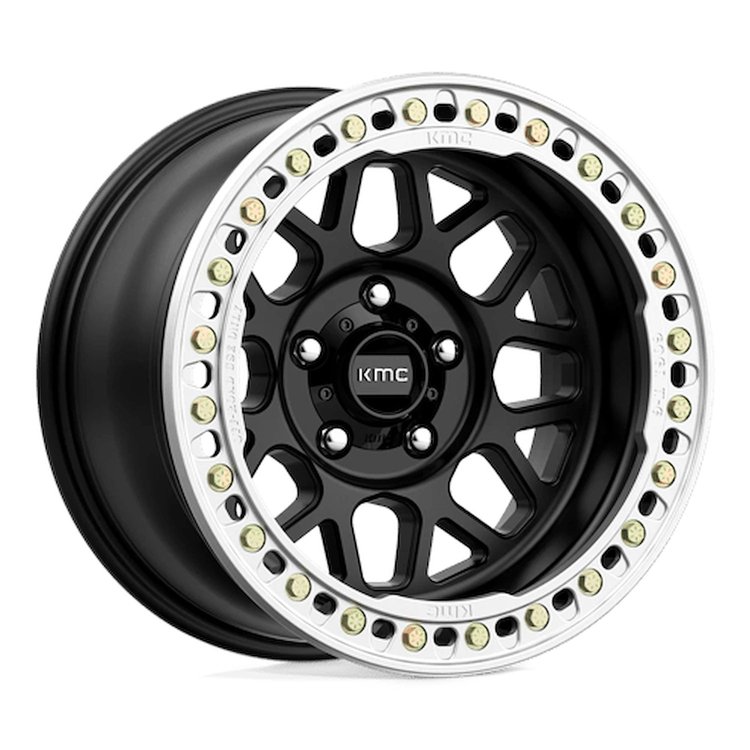

KM23578580700 KM235 GRENADE CRAWL Beadlock Wheel [Size: 17"x8.5"] Satin Black Finish
$62000
Ships Tomorrow
Lowest Price GuaranteeItems You Need
![Wheel Chock [Solid Rubber]](https://www.jegs.com/images/mini_200/500/555/555-w41001.jpg)
![Mechanic Chair & Step Stool on Wheels [300 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-81156.jpg)
![Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]](https://www.jegs.com/images/mini_200/500/555/555-w32902.jpg)
JEGS
Part Number : 555-W32902
$4199$46.99
You Save$5.00
![Torque Limiting Extensions, 1/2 in. Drive [5-Piece]](https://www.jegs.com/images/mini_200/500/555/555-w32903.jpg)
JEGS
Part Number : 555-W32903
$5699$62.99
You Save$6.00
![Breaker Bar [1/2 in. Drive, 30 in. L]](https://www.jegs.com/images/mini_200/500/555/555-w32126.jpg)
![1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]](https://www.jegs.com/images/mini_200/500/555/555-m200db.jpg)
JEGS
Part Number : 555-M200DB
$5239$56.99
You Save$4.60
![Deluxe Tire Pressure Gauge [0-60 psi]](https://www.jegs.com/images/mini_200/500/555/555-65533.jpg)
![3-Ton Aluminum Floor Jack [6,000 lbs. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-80077.jpg)
17 in. Diameter
KM235 GRENADE CRAWL Beadlock WheelSize: 17"x8.5" Bolt Pattern: 8 x 6.5" Backspace: 4.75" Offset: 00 mm Hub Bore: 125.1 mm Load: 3640 lbs. Finish: Satin Black
JEGS How to Measure Wheel Fitment: Click Here
American Racing Wheels KM23578580700 Features:
- Wheel Diameter: 17 in.
- Wheel Width: 8.5 in.
- Lip Depth: 2.47 in.
- Wheel Weight: 32.97 lbs.
- Wheel Material: Cast Aluminum
- TPMS Compatible: No
- Certification: SAEJ2530
- Center Cap Number: T163H170-8-H65-S2
Part TypeWheel
BrandAMERICAN RACING
Package Height9.5
Package Width17.0
Package Length18.0
Weight36.97 PG
Part CategoryAccessories
Wheel Size17 x 8.5 in.
Dot ApprovedNo
Load Rating (Lbs.)3640
Quantity1
Tpms CompatibleNo
Wheel MaterialCast Aluminum
Wheel FinishSatin Black
Functional BeadlockYes
Bolt Pattern8 x 6.5 in.
Back Spacing4.75 in.
Offset0 mm
Backspacing4.75 in.
Center Bore Diameter125.1 mm
Center Cap IncludedYes
Load Rating3640 lbs.
Wheel Bolt Pattern8 x 6.5"
Wheel Diameter17 in.
Wheel Offset00 mm
Part FitmentUniversal
Wheel Width8.5 in.
Vendor Part NumberKM23578580700
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
