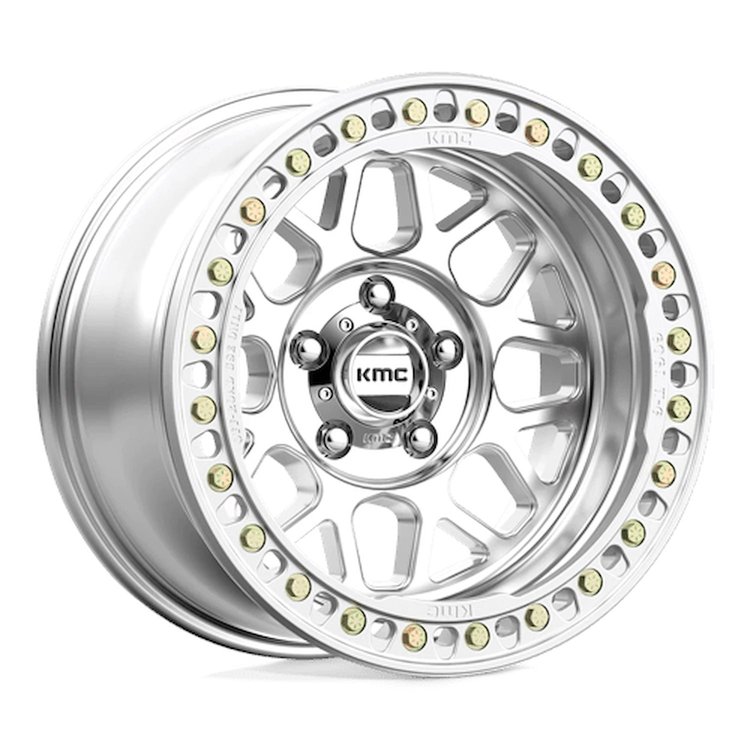

KM23589087510 KM235 GRENADE CRAWL Beadlock Wheel [Size: 18"x9"] Machined Finish

Vehicle Info Needed

AMERICAN RACINGPART NUMBER: 286-J000386

KM23589087510 KM235 GRENADE CRAWL Beadlock Wheel [Size: 18"x9"] Machined Finish

Name: KM23589087510 KM235 GRENADE CRAWL Beadlock Wheel [Size: 18"x9"] Machined Finish
Brand: AMERICAN RACING
SKU: 286-J000386
Price: 745.00 USD
Availability: InStock

^$745⁰⁰

Ships on 09/15/2026

Lowest Price Guarantee

18 in. Diameter

KM235 GRENADE CRAWL Beadlock Wheel

Size: 18"x9"

Bolt Pattern: 8 x 170 mm

Backspace: 5.39"

Offset: 10 mm

Hub Bore: 125.1 mm

Load: 3640 lbs.

Finish: Machined

JEGS How to Measure Wheel Fitment: Click Here

American Racing Wheels KM23589087510 Features:

Wheel Diameter: 18 in.
Wheel Width: 9 in.
Lip Depth: 2.43 in.
Wheel Weight: 34.1 lbs.
Wheel Material: Cast Aluminum
TPMS Compatible: Yes
Certification: N/A
Center Cap Number: T163H170-8-H77-P1

Part TypeWheel

BrandAMERICAN RACING

Package Height10.0

Package Width18.0

Package Length19.0

Weight38.1 PG

Part CategoryAccessories

Wheel Size18 x 9 in.

Dot ApprovedNo

Load Rating (Lbs.)3640

Quantity1

Tpms CompatibleYes

Wheel MaterialCast Aluminum

Wheel FinishMachined

Functional BeadlockYes

Bolt Pattern8 x 170 mm

Back Spacing5.39 in.

Offset10 mm

Backspacing5.39 in.

Center Bore Diameter125.1 mm

Center Cap IncludedYes

Load Rating3640 lbs.

Wheel Bolt Pattern8 x 170 mm

Wheel Diameter18 in.

Wheel Offset10 mm

Part FitmentUniversal

Wheel Width9 in.

Vendor Part NumberKM23589087510

Package Qty1

Package TypeEA
