![KM54078550718 KM540 RECON Wheel [Size: 17"x8.5"] Satin Black Finish](https://www.jegs.com/images/mini_750/200/286/286-j000514.jpg)
Vehicle Info NeededAMERICAN RACINGPART NUMBER: 286-J000514

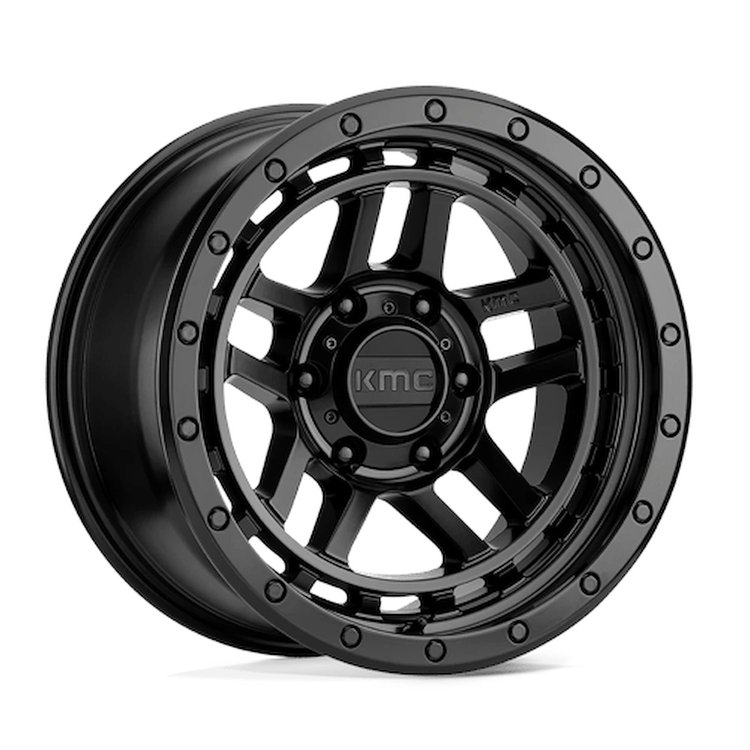

KM54078550718 KM540 RECON Wheel [Size: 17"x8.5"] Satin Black Finish
$37000
Ships Tomorrow
Lowest Price GuaranteeItems You Need
![Wheel Chock [Solid Rubber]](https://www.jegs.com/images/mini_200/500/555/555-w41001.jpg)
![Mechanic Chair & Step Stool on Wheels [300 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-81156.jpg)
![Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]](https://www.jegs.com/images/mini_200/500/555/555-w32902.jpg)
JEGS
Part Number : 555-W32902
$4199$46.99
You Save$5.00
![Torque Limiting Extensions, 1/2 in. Drive [5-Piece]](https://www.jegs.com/images/mini_200/500/555/555-w32903.jpg)
JEGS
Part Number : 555-W32903
$5699$62.99
You Save$6.00
![Breaker Bar [1/2 in. Drive, 30 in. L]](https://www.jegs.com/images/mini_200/500/555/555-w32126.jpg)
![1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]](https://www.jegs.com/images/mini_200/500/555/555-m200db.jpg)
JEGS
Part Number : 555-M200DB
$5239$56.99
You Save$4.60
![Deluxe Tire Pressure Gauge [0-60 psi]](https://www.jegs.com/images/mini_200/500/555/555-65533.jpg)
![3-Ton Aluminum Floor Jack [6,000 lbs. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-80077.jpg)
17 in. Diameter
KM540 RECON WheelSize: 17"x8.5" Bolt Pattern: 5 x 5" Backspace: 5.46" Offset: 18 mm Hub Bore: 71.5 mm Load: 2500 lbs. Finish: Satin Black
JEGS How to Measure Wheel Fitment: Click Here
American Racing Wheels KM54078550718 Features:
- Wheel Diameter: 17 in.
- Wheel Width: 8.5 in.
- Lip Depth: 1.35 in.
- Wheel Weight: 32.79 lbs.
- Wheel Material: Cast Aluminum
- TPMS Compatible: Yes
- Certification: SAEJ2530 JWL-T VIA
- Center Cap Number: T163H120-5-H30-S7
Part TypeWheel
BrandAMERICAN RACING
Package Height9.5
Package Width17.0
Package Length18.0
Weight36.79 PG
Part CategoryAccessories
Wheel Size17 x 8.5 in.
Dot ApprovedYes
Load Rating (Lbs.)2500
Quantity1
Tpms CompatibleYes
Wheel MaterialCast Aluminum
Wheel FinishSatin Black
Bolt Pattern5 x 5 in.
Back Spacing5.46 in.
Offset18 mm
Backspacing5.46 in.
Center Bore Diameter71.5 mm
Center Cap IncludedYes
Load Rating2500 lbs.
Wheel Bolt Pattern5 x 5"
Wheel Diameter17 in.
Wheel Offset18 mm
Part FitmentUniversal
Wheel Width8.5 in.
Vendor Part NumberKM54078550718
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
