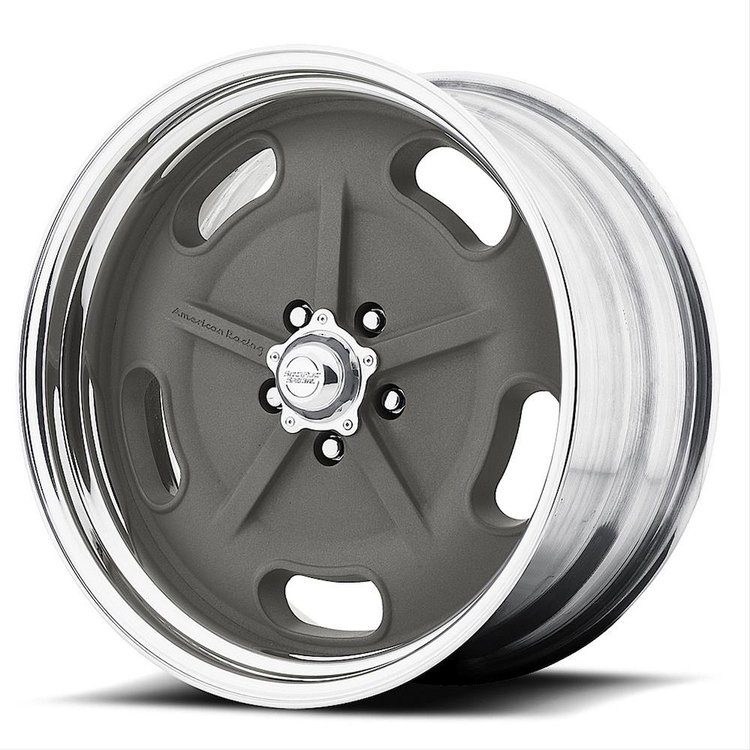

VN470 SALT FLAT Wheel, Size: 17x7", Bolt Pattern: 5x4.5" [Mag Gray] 00 mm Offset

Vehicle Info Needed

AMERICAN RACINGPART NUMBER: 286-VN470776540

VN470 SALT FLAT Wheel, Size: 17x7", Bolt Pattern: 5x4.5" [Mag Gray] 00 mm Offset

Name: VN470 SALT FLAT Wheel, Size: 17x7", Bolt Pattern: 5x4.5" [Mag Gray] 00 mm Offset
Brand: AMERICAN RACING
SKU: 286-VN470776540
Price: 469.99 USD
Availability: InStock

^$469⁹⁹

Ships on Sep 14, 2026

Lowest Price Guarantee

17" x 7"

VN470 SALT FLAT Wheel

Size: 17X7"

Bolt Pattern: 5X4.5"

Backspacing: 4"

Offset: 0 mm

Hub Bore: 83.06 mm

Load Rating: 1580 lbs.

Finish: Mag Gray

JEGS How to Measure Wheel Fitment: Click Here

VN470776540 Features:

Cast Center Forged Barrel Construction
22.98 lbs. Wheel Weight
Replacement Center Cap Part Number: 3505293SF

Part TypeWheel
BrandAMERICAN RACING
Package Width26.3
Weight26.3 PG
Part CategoryPerformance Parts
Valve Stems IncludedNo
Wheel Size17x7
Load Rating (Lbs.)1,580
QuantitySold individually
Wheel MaterialForged Aluminum
Wheel FinishGray
Back Spacing4 in (101.6 mm)
Hub Centric Ring CompatibleYes
Small Diameter Lug Nuts RequiredNo
Center Bore Diameter2.858 in (72.593 mm)
Center Cap IncludedYes
Wheel Diameter17 in (431.8 mm)
Wheel Bolt Pattern5 x 4 1/2 (114.3 mm)
Wheel TypeCar Street Wheels
Wheel Offset0 mm (0 in)
Part FitmentUniversal
Wheel Width7 in (177.8 mm)
Vendor Part NumberVN470776540
Package Qty1
Package TypeEA
