![A02 Flow-Formed Wheel, Size: 20 x 9" [Satin Black]](https://www.jegs.com/images/mini_750/100/172/172-whl00036.jpg)
Vehicle Info NeededAPRPART NUMBER: 172-WHL00036

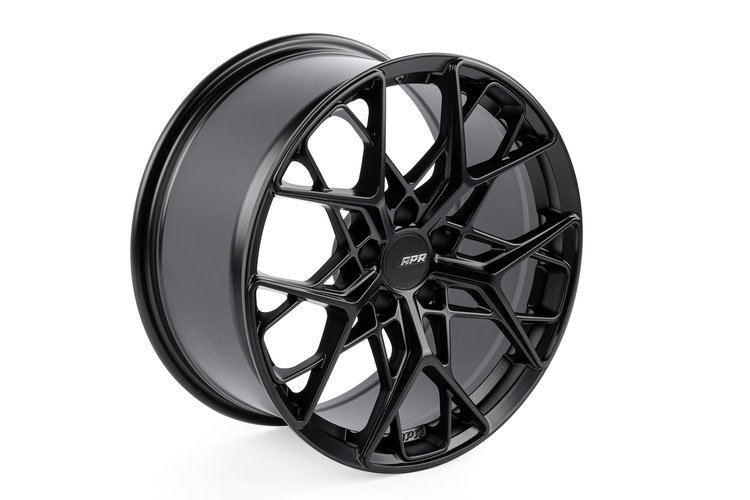

A02 Flow-Formed Wheel, Size: 20 x 9" [Satin Black]
$44995
Ships on Sep 04, 2026
Lowest Price Guarantee20" Diameter
A02 Flow-Formed WheelSize: 20 x 9" Bolt Pattern: 5 x 112 mm Offset: 37 mm Center Bore: 57.100 mm/66.500 mm Load Rating: 1587 lbs. Weight: 22 lbs. Finish: Satin Black
JEGS How to Measure Wheel Fitment: Click Here
APR WHL00036 Features:
- Flow-formed aluminum construction provides strength and weight-savings
- Pockets behind the wheel face for additional weight savings
- An interlocking hub-centric ring prevents wheel wobble
- Machined with an anti-slip feature to help prevent the tire from rotating on the wheel
- Tested to SAE J2530 and VIA/JWL specifications
- Compatible with various OEM Audi, Seat, Skoda, and Volkswagen center-caps (VW 7L6601149B & Audi 8T0601170A)
- Compatible with OEM-style and length ball seat lug bolts
APR WHL00036 Notes:
- The bolt pattern fits most 2005-newer Audi, Seat, Skoda, and Volkswagen vehicles
- Fits both common VAG center bores of 66.500 mm and 57.100 mm (with insert)
Part TypeWheel
BrandAPR
Package Height11.5
Package Width20.0
Package Length20.0
Weight23.8 PG
Valve Stems IncludedNo
Wheel Size20x9
Hub CentricYes
Load Rating (Lbs.)1,587
QuantitySold individually
Wheel MaterialFlow-Formed Aluminum
Wheel FinishSatin Black
Back Spacing6.46 in (164.1 mm)
Hub Centric Ring CompatibleYes
Center Bore Diameter2.62 in (66.548 mm)
Center Cap IncludedYes
Wheel Diameter20 in (508 mm)
Wheel Bolt Pattern5 x 112 mm
Lug Nut Seat StyleBall seat
Wheel TypeCar Street Wheels
Wheel Offset37 mm (1.4567 in)
Wheel Width9 in (228.6 mm)
Vendor Part NumberWHL00036
Package Qty1
Package TypeEA
