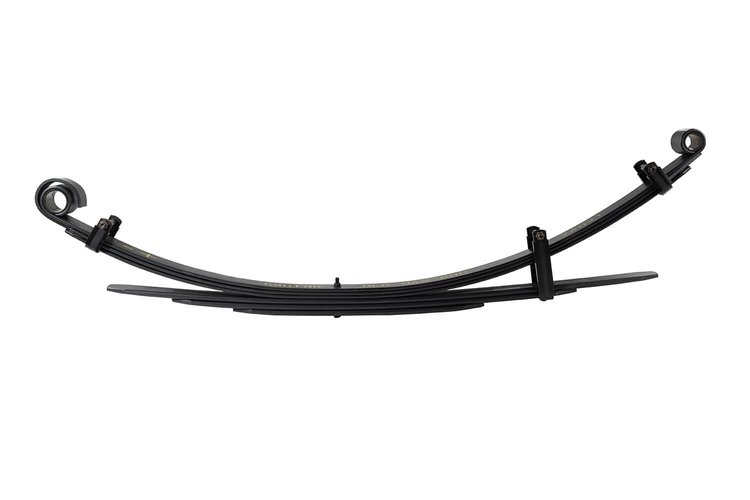

Old Man EMU CS019R Rear Leaf Spring for 1989-1994 Toyota Pickup
InfoVehicle Info Needed
ARB 4X4PART NUMBER: 378-CS019R

Old Man EMU CS019R Rear Leaf Spring for 1989-1994 Toyota Pickup

$22995
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

3-Ton Aluminum Floor Jack [6,000 lbs. Capacity]

JEGS

3-Ton Aluminum Floor Jack [6,000 lbs. Capacity]

Part Number : 555-80077
$25999$285.99
You Save$26.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$6479$89.99
You Save$25.20
Wheel Chock [Solid Rubber]

JEGS

Wheel Chock [Solid Rubber]

Part Number : 555-W41001
$1299$14.99
You Save$2.00
Lo Boy Creeper 250 lb. Capacity

JEGS

Lo Boy Creeper 250 lb. Capacity

Part Number : 555-81154
$5999$65.99
You Save$6.00

Toyota
Rear Leaf Spring
  • 1989-1994 Toyota Pickup
  • Color: Black
  • Material: Steel
  • Spring Rate: 125 / 485 lbs.

    Old Man EMU CS019R Features:

    Part of ARB's integrated 4X4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4X4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.

    • Draw-tapered and diamond cut leaves
    • Bolted leaf clamps allow installation of anti-squeak nylon liners
    • Fully scragged to reduce the risk of sagging
    • Load tested to ensure the spring meets the required specification
    • Military wrap design provides added safety
    • Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips
    • Flat axle seat area allows a positive, safe axle mount and reduces spring stress
    • Shot peened to reduce spring stress and increase spring life
    • Two-stage leaf pack featured on most rear springs for optimum comfort
    • Improve Ride and Load Carrying Capability

      Old Man EMU Leaf Springs are designed to deliver optimal ride performance, regardless of the conditions your vehicle's suspension encounters. They are fully scragged to minimize the risk of sagging, load-tested, and shot-peened to reduce stress and extend the spring's lifespan. These leaf springs can be tailored to meet the needs of both recreational and commercial applications.

    Part TypeLeaf Spring
    Product LineOld Man EMU Suspension Leaf Springs
    BrandARB 4X4
    Package Height3.0
    Package Width11.5
    Package Length50.0
    Weight54.0 PG
    Part CategoryPerformance Parts
    Part FitmentDirect Fit
    Vendor Part NumberCS019R
    Package Qty1
    Package TypeEA
