Remanufactured Crate Engine for Marine Applications with 1973-1990 Big Block Chevy 454ci/7.4L
InfoVehicle Info Needed
ATK ENGINESPART NUMBER: 059-DM32

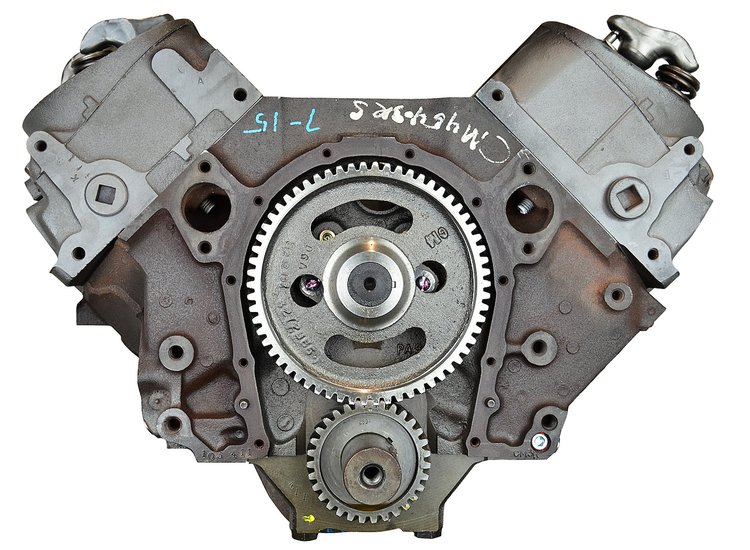

Remanufactured Crate Engine for Marine Applications with 1973-1990 Big Block Chevy 454ci/7.4L

$4,01781
Core Charge: $72000
Truck Freight
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chevrolet
    Remanufactured Marine Crate Engine
  • 1973-1990 V8 454ci/7.4L
  • Mark IV Big Block Chevy
  • Reverse Rotation
  • 330hp Rating

    ATK Core Return Process
    JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.

    Please CLICK HERE for ATK Core Return Process

    Notes:

    • Block Cast #: 959, 445, 286, 775, 289
    • Reverse rotation
    • 2 bolt main
    • 10 bolt timing cover
    • Round intake port
    • 2 piece rear main sea

    Engine Break-In Procedure

    Use conventional or break-in oil (non-synthetic) for the first 600 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. Check the engine oil and coolant levels daily.

    At 600 Miles change the engine oil and filter using conventional (non-synthetic) oil. Check fuel and ignition settings; adjust valves (where applicable).

    After the first 5,000 of service synthetic engine oil may be used. Follow your vehicle owner’s manual for service intervals.

    Please CLICK HERE for ATK Warranty

Part TypeEngine
BrandATK ENGINES
Package Height36.0
Package Width36.0
Package Length36.0
Weight565.0 PG
Part CategoryPerformance Parts
Engine TypeMarine Engine
Cylinder Head MaterialCast iron
Engine Block MaterialCast iron
QuantitySold individually
Engine Displacement454 ci.
Engine Make/SizeChevy Big Block
Vendor Part NumberDM32
Package Qty1
Package TypeEA
No Questions
No Reviews
