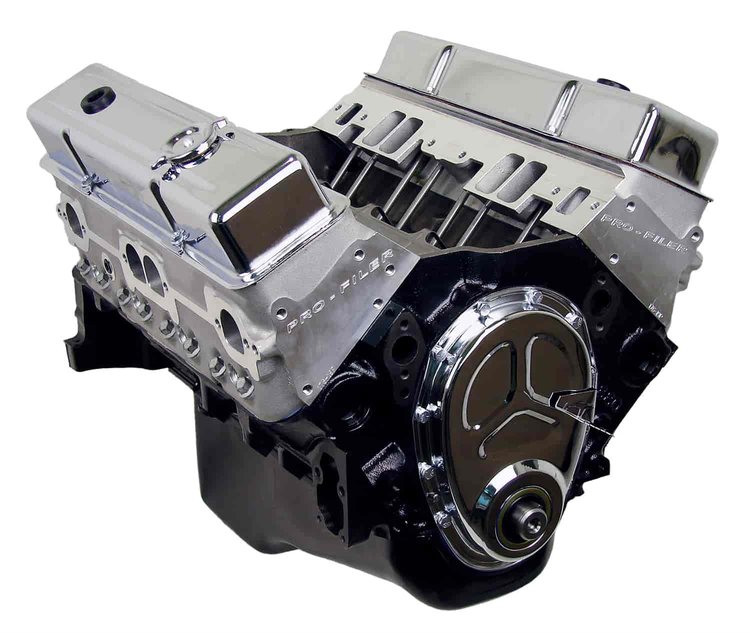

High Performance Crate Engine Small Block Chevy 350ci / 365HP / 400TQ

Name: High Performance Crate Engine Small Block Chevy 350ci / 365HP / 400TQ
Brand: ATK ENGINES
SKU: 059-HP91
Price: 3558.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

High Performance Crate Engine

Small Block Chevy 350ci

365HP / 400TQ

Base Engine

Core Details

NOTE:

Core return can be any Small Block Chevy 350ci engine, except 1992-1997 LT1 style engines

Engine Info

Exhaust: 1-5/8" Headers
Firing Order: 18436572
Octane: 87+
Oil: 10W30 (Conventional / Non Synthetic)
Oil Filter: Wix or K&N
Spark Plug Gap: .035"
Stall Converter: 2200-2500
Timing: 34-36 Degrees

Recommended Components

Balancer: Internal balance
Carburetor: Quick Fuel 680cfm vacuum secondary electric choke #793-HR-680-VS
Distributor: HEI (iron gear)
Flexplate/Flywheel: External balance 1987-Up
Intake Manifold: Weiand Stealth dual plane #925-8150
Fuel Pump: Holley Mechanical 110gph #510-12-327-11
Spark Plugs: Autolite #417-3923
Spark Plug Wires: 8mm
Water Pump: OE long pump

Disclaimer: The parts listed are ATK's recommendations of parts to be used to obtain the power figures listed. Power figures can vary based on parts used by the end user. Some modifications to the vehicle may be required using these and or other aftermarket parts.

Engine Break-In Procedure

Use or break-in oil or conventional (non-synthetic) 10w30 oil with zinc additive for the first 500 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. It is best to avoid long periods of idling during this period. Check the engine oil and coolant levels daily.

Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. Let the engine cool down completely and repeat process 2-3 more times. Do not idle the engine for any extended period at this time, this is critical to break in the camshaft.

At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil with a zinc additive. Check fuel and ignition settings, adjust valves (where applicable). Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading or long periods of idling.

Change the oil and oil filter again at 1,000 miles. Continue using conventional (non-synthetic) oils and zinc additive, until about 4,000 miles. At that point, you may run a quality 10w30 synthetic oil if you choose. Use of oil with zinc or a zinc additive for the life of your engine is recommended.

Please CLICK HERE for ATK Warranty

Streetable Small Block Chevy Performance

In 2007, ATK launched a High-Performance Division with one of the finest engine shops in the country. By reverse engineering all of their engines, ATK is able to eliminate any OEM deficiencies, making an ATK built crate engine a superior design over the original engine design by incorporating better components when needed. Quality built Chevy 350 engines are offered in three different stages for ease of finishing an engine swap. ATK HP engines feature a 24 month/unlimited mile warranty.

Engine Specifications

Great crate engine with a noticeable idle, very street able with lots of power.
