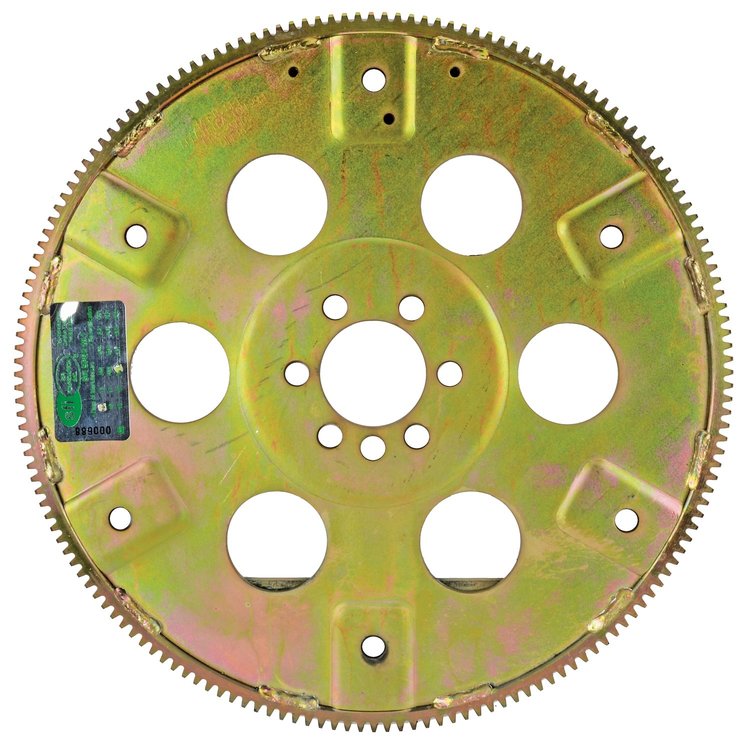

Heavy-Duty SFI Flexplate for 1986-1997 Small Block Chevy [Externally Balanced]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-601074

Heavy-Duty SFI Flexplate for 1986-1997 Small Block Chevy [Externally Balanced]

$10019$110.99You Save$10.80
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy Externally Balanced - 168 Tooth
Heavy-Duty SFI Flexplate
  • 1986-1997 Small Block Chevy
  • 168-Tooth
  • Externally Balanced
  • 1-Piece Rear Main
  • Dual Bolt Pattern (10.75 in. & 11.50 in.)
  • 14.13 in. Diameter x 0.140 in. Thick
  • Chromoly Steel
  • SFI 29.1 Rated

    JEGS 601074 Heavy-Duty Flexplate for use with Small Block Chevy externally balanced engines is engineered to handle extreme-duty applications and designed to take the punishment of today’s high-horsepower engines. This Flexplate is .035 in. thicker than stock and has a 29.1 SFI approval stamped into the face of the plate.

    555-601074 Heavy-Duty SFI Flexplate Features:

    • Fits 1986-1997 Chevrolet Small Block V8 engines with 1-piece rear main seal
    • Sfi 29.1 rating to meet most racing sanctioning bodies
    • Dual torque converter bolt pattern to fit both 10.750 in. and 11.500 in.
    • Made from chromoly steel for strength and long life
    • Specifications: 168 teeth and externally balanced

      • SFI 29.1 Rated Flexplates

      Built to exceed OE specifications, JEGS die-stamped flexplates are made from Chromoly steel with a double-welded ring gear to prevent separation in high-RPM engines. Each drag racing flexplate has a zinc-dichromate finish applied to prevent degradation, then undergoes a final plate inspection and SFI certification testing to guarantee complete customer satisfaction.

    Part TypeFlexplate
    Product LineJEGS Heavy-Duty SFI Flexplates
    BrandJEGS
    Package Height0.9
    Package Width14.0
    Package Length14.1
    Weight7.55 PG
    Part CategoryPerformance Parts
    Ring Gear Tooth Quantity168-tooth
    Flexplate MaterialSteel
    Rear Main Seal Style1-piece
    Converter Bolt PatternDual 10.750 in./11.500 in.
    Trans Model4L60E
    Part FitmentSemi Universal
    Engine BalanceExternal
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
