ATK Core Return Process
JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.

Please CLICK HERE for ATK Core Return Process

NOTE:

• Core return can be any Chevy LS 6.0L engine

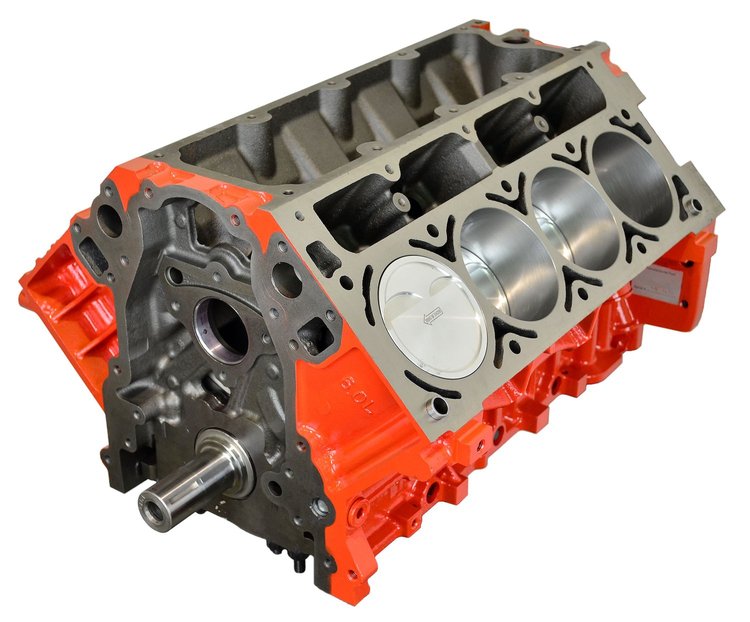

This short block is built with a mild compression ratio that is great for easy tuning on pump gas or running a small shot of nitrous.

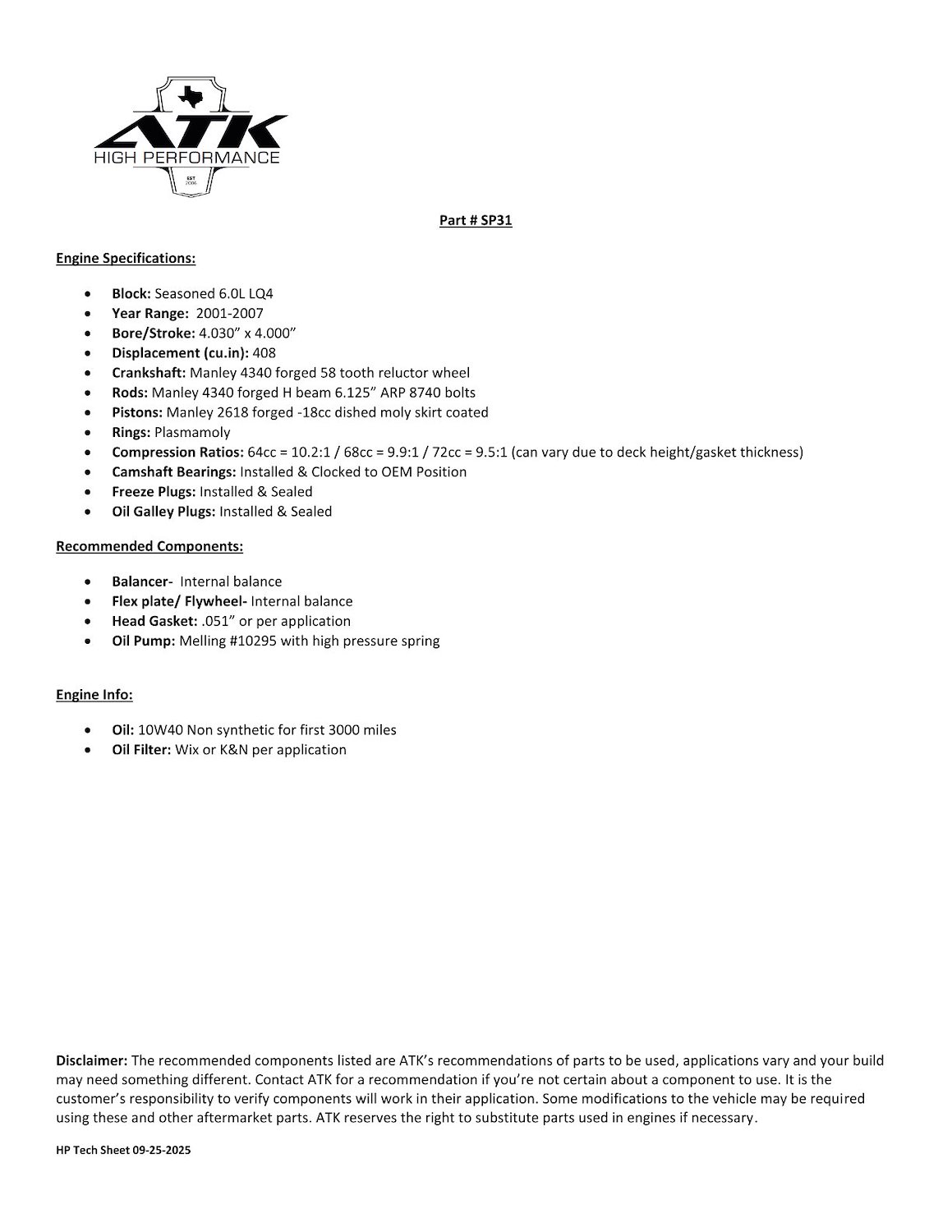

Block Information:

• Seasoned OE 2001-2007 GM Cast Iron LQ4 6.0L
• Bore/Stroke: 4.030" x 4.000"
• Displacement: 408ci
• Camshaft Bearings: Installed and clocked to OEM position
• Freeze Plugs: Installed and sealed
• Oil Galley Plugs: Installed and sealed

Rotating Assembly:

• Crankshaft: Manley 4340 forged 58 tooth reluctor wheel
• Rods: Manley 4340 forged H beam rods with ARP 8740 bolts
• Compression Ratio: 64cc= 10.2:1 68cc= 9.9:1 / 72cc= 9.5:1
• Pistons: Manley 2618 forged dished -18cc
• Rings: Plasmamoly

  Recommended Components:

• Balancer: Internal balance
• Flexplate/Flywheel: Internal balance
• Head Gasket: .051" thickness or per application
• Oil: 10W40 Non synthetic for first 3000 miles
• Oil Filter: Wix or K&N per application
• Oil Pump: Melling #689-10295 with high pressure spring

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Please CLICK HERE for ATK Warranty
