ATK Core Return Process
JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.

Please CLICK HERE for ATK Core Return Process

• Core return can be any Chevy LS 6.0L engine

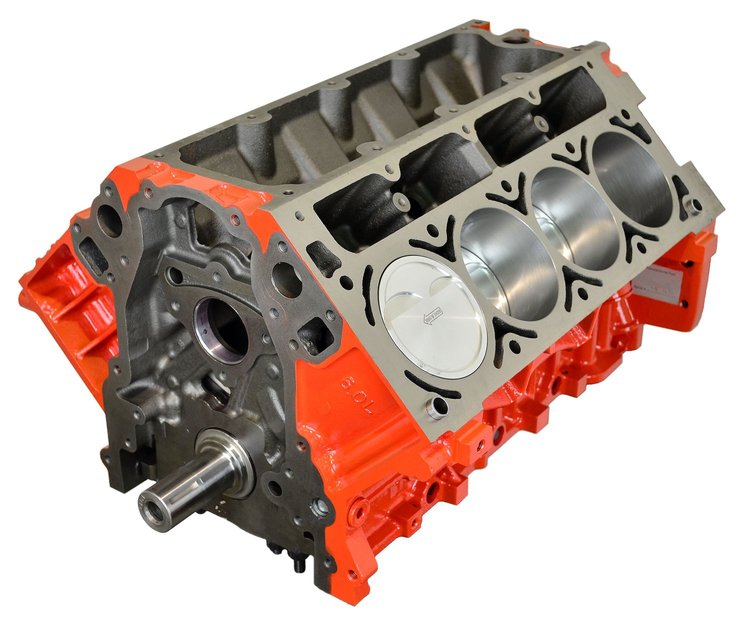

Engine Specifications:

• Block: Seasoned 6.0L Iron Gen IV with ARP main studs
• Bore/Stroke: 4.030” x 4.000”
• Displacement (cu.in): 408
• Crankshaft: Manley 4340 forged 58 tooth reluctor wheel
• Rods: Manley 4340 forged H beam 6.125” ARP 2000 bolts
• Pistons: Manley 2618 forged -4cc flat top moly skirt coated
• Rings: Total Seal CS AP with steel top rings gapped for boost/nitrous
• Compression Ratios: 64cc = 11.9:1 / 68cc = 11.4:1 / 72cc = 11.0:1 (can vary due to deck height/gasket thickness)
• Camshaft Bearings: Installed & Clocked to OEM Position
• Freeze Plugs: Installed & Sealed
• Oil Galley Plugs: Installed & Sealed

Recommended Components:

• Balancer- Internal balance
• Flexplate/ Flywheel- Internal balance
• Head Gasket: .051” or per application
• Oil Pump: Melling #10295 with high-pressure spring Engine Info:
• Oil: 10W40 Non-synthetic for first 3000 miles
• Oil Filter: Wix or K&N per application

Notes:

• ATK’s Boost/Nitrous short blocks are meant for engines running these setups. Bearing clearances and ring gaps have been taken into consideration for this series of short blocks

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Please CLICK HERE for ATK Warranty
