ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

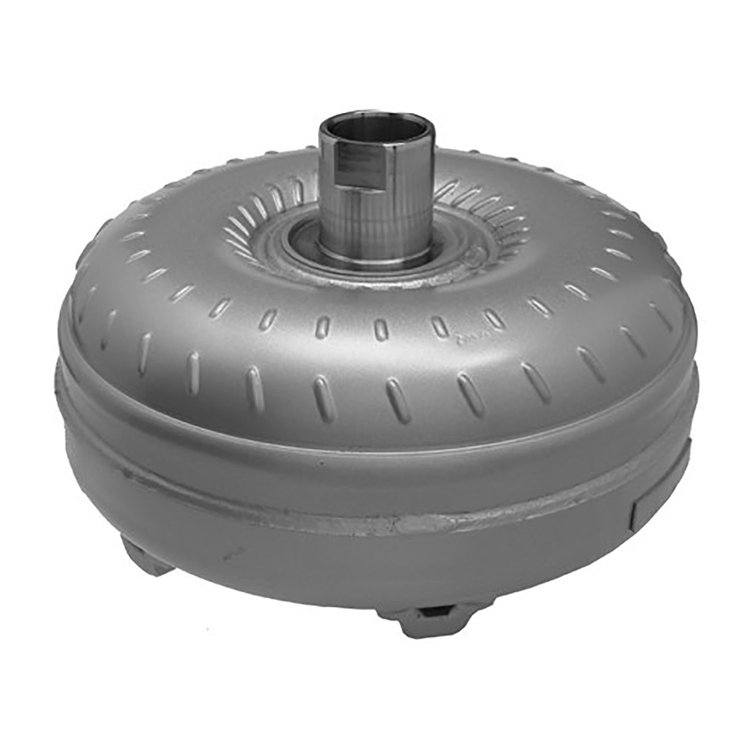

ATK TQA2RTC Features:

• Bosses/Mounting: 6 Pad Mounting
• Factory Code(s): 1000/M74
• Mount Thread: M10x1.5 Threads
• OEM Make: Allison
• Spline to Turbine: 25 Spline
• Converter Mount/Diameter: 13.5 in. Diam
• Hub OD: Milled Flats on 2.295 in. Hub
• Mounting Holes Distance: 11.5 in. Bolt Circle
• Pilot to Engine: 1.703 in. Pilot
• TAG ID: ID CODE: 29546573
• Note: Triple Clutch Build, Green Stripe on Label, Clutch Retaining Rivets Can Be Seen Between Mounting Pads
• Interchange part numbers: A2RTC, TQA2RTC

  Please CLICK HERE for ATK Warranty
