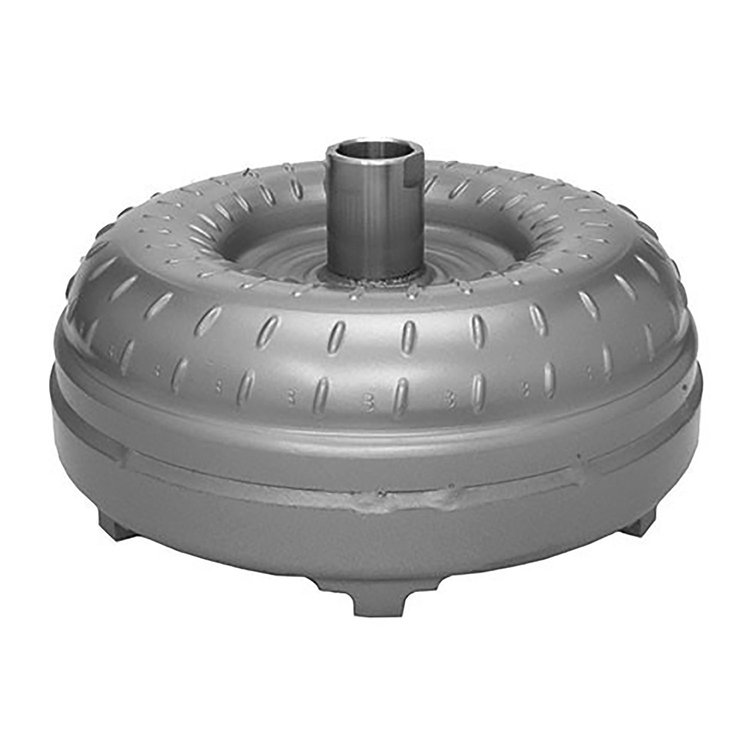

ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

ATK TQBU54HD Features:

• Bosses/Mounting: 6 Pads Mounting
• Factory Code(s): 4L85E
• Mounting Holes Distance: 11.5 in. Bolt Circle
• Pilot to Engine: 1.703 in. Pilot
• TAG ID: ID CODE: 24210825, 24210830, 24210831, 24217235, 24219326/328, 24221719/7936, 24240861
• Note: HD Billet Cover, 2200 Stall
• Converter Mount/Diameter: 13.5 in. Dia
• Hub OD: 2 in. Flats Hub, 2 5/8 in. Hub Length
• OEM Make: GM
• Spline to Turbine: 35 Spline
• Interchange part numbers: BU54HD, TQBU54HD

  Please CLICK HERE for ATK Warranty
