ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

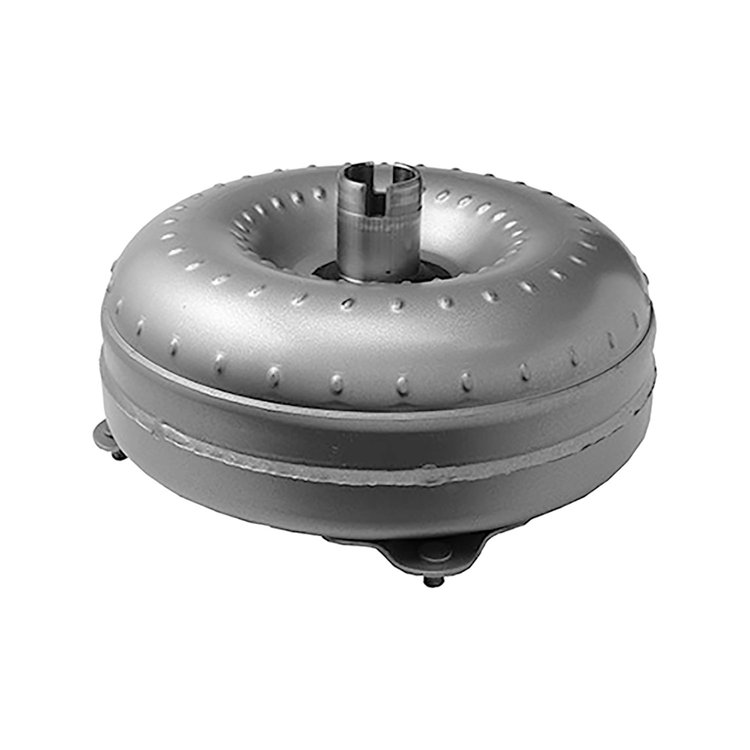

ATK TQFM104 Features:

• Note: 27 Spline Stator, Multi-Fricition Captive Clutch
• Bosses/Mounting: 4 Stud on 12.5 in. Mounting Plate Riveted to Front Cover
• Factory Code(s): 6R80
• Converter Mount/Diameter: 12 in. Diam
• Hub OD: 1.772 in. Stepped & Slotted Hub
• Mount Thread: M10x1.0 Thread
• Mounting Holes Distance: 11 3/8 in. Bolt Circle
• OEM Make: Ford
• Pilot to Engine: 1.375 in. Pilot
• Spline to Turbine: 32 Spline
• TAG ID: INK CODE: Orange Swatch by One Stud, METAL ID STAMP: B, BR3P-BB/BC, 9L3P-AA/AF/AG/AH
• Interchange part numbers: FM104, TQFM104

  Please CLICK HERE for ATK Warranty
