ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

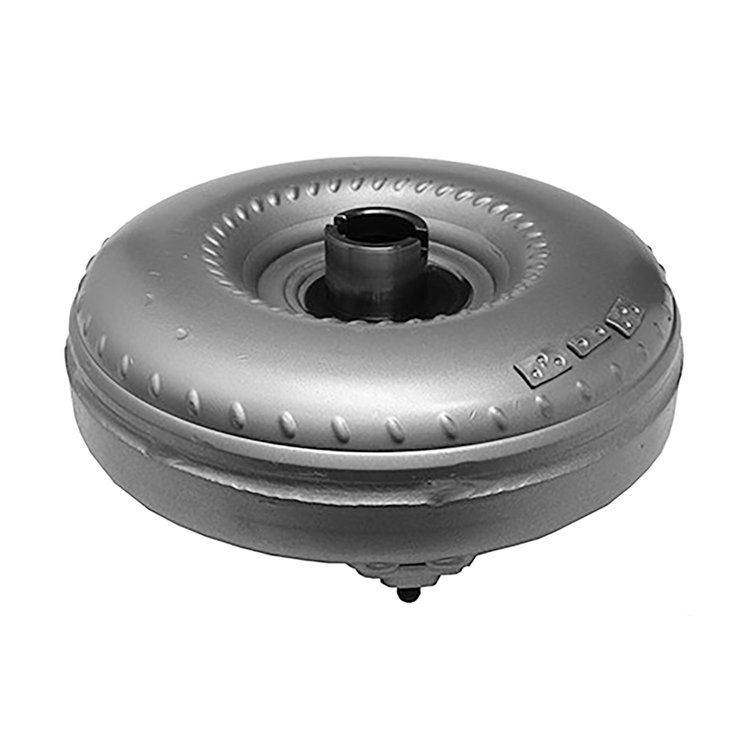

ATK TQFM106 Features:

• Note: 42 Spline Stator
• Converter Mount/Diameter: 11 in. Diam
• Factory Code(s): AW6AEL
• Hub OD: 1.85 in. Flanged & Slotted Hub
• Mount Thread: M10x1.0 Thread
• Pilot to Engine: 1.375 in. Hollow Pilot
• Spline to Turbine: 23 Spline
• TAG ID: ID CODE: 71A120, 71A140, 71A170
• Bosses/Mounting: 4 Stud Mounting
• Mounting Holes Distance: 9 in. Bolt Circle
• OEM Make: Mazda
• Interchange part numbers: FM106, TQFM106

  Please CLICK HERE for ATK Warranty
