ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

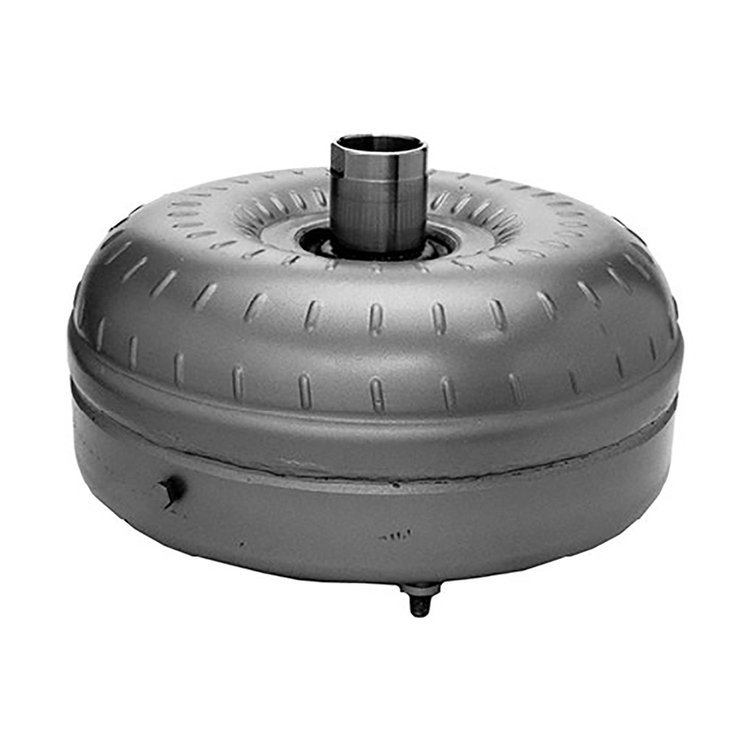

ATK TQFM64LS Features:

• Note: Low Stall
• Bosses/Mounting: 4 Stud Mounting
• Converter Mount/Diameter: 12.75 in. Diam
• Hub OD: Milled Flats Hub
• Mount Thread: 3/8x24 Threads
• Mounting Holes Distance: 11 3/8 in. Bolt Circle
• OEM Make: Ford
• Factory Code(s): 4R100
• Pilot to Engine: 1.375 in. by 1.25 in. Long Pilot
• Spline to Turbine: 31 Spline
• TAG ID: ID CODE: L, N, R, W
• Interchange part numbers: FM64LS, TQFM64LS

  Please CLICK HERE for ATK Warranty
