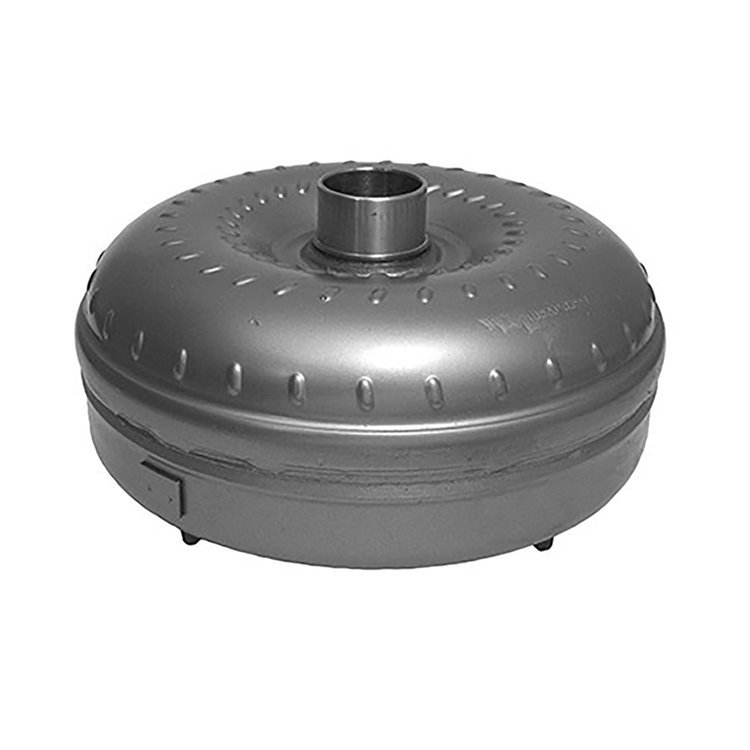

ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

ATK TQFM74 Features:

• Note: Carbon Clutch
• Bosses/Mounting: 4 Stud Mounting
• Converter Mount/Diameter: 11 in. Diam
• Factory Code(s): 4F50N
• Hub OD: No Drive 1.997 in. Hub 1.055 in. Long with Inner Bushing
• Mount Thread: M10x1.0 Thread
• Mounting Holes Distance: 8 7/8 in. Bolt Circle
• OEM Make: Ford
• Pilot to Engine: .825 in. Pilot
• Spline to Turbine: 25 Spline
• TAG ID: ID METAL STAMP: 3F1P, Purple Paint Swatch, Hot Pink Paint Swatch
• Interchange part numbers: FM74, TQFM74
