ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

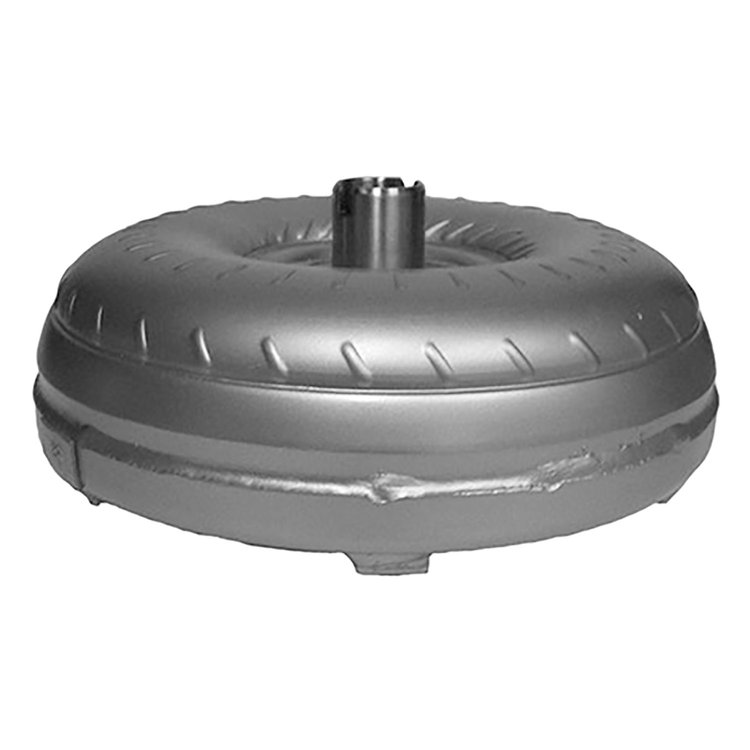

ATK TQLX4 Features:

• Note: 38 Spline Stator
• Bosses/Mounting: 6 Pad Mounting .405 in. Tall
• Converter Mount/Diameter: 11 3/8 in. Diam
• Factory Code(s): A650E
• Hub OD: 1.50 in. Slotted & Flanged Hub 1.75 in. Long
• Mount Thread: M9x1.25 Thread
• Mounting Holes Distance: 9 1/8 in. Bolt Circle
• OEM Make: Lexus
• Pilot to Engine: 1.257 in. Pilot .825 in. Long Stepped
• Spline to Turbine: 20 Spline
• TAG ID: ID INK CODE: A121
• Interchange part numbers: LX4, TQLX4

  Please CLICK HERE for ATK Warranty
