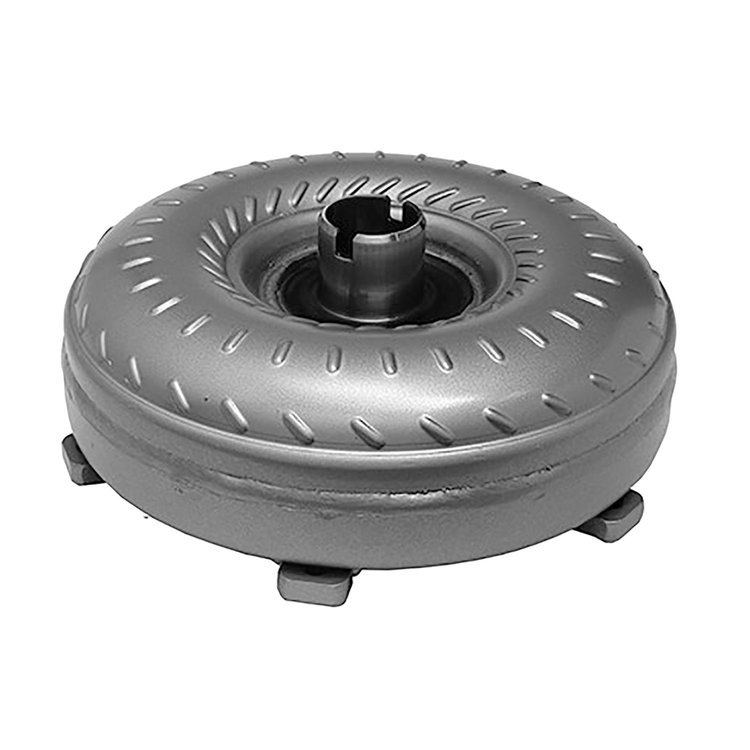

ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

ATK TQLX7 Features:

• Note: 34 Spline Stator
• Converter Mount/Diameter: 9 7/8 in. Diam
• Hub OD: 1.695 in. Slotted & Flanged Hub
• Mount Thread: M9x1.25 Thread
• OEM Make: Toyota
• Spline to Turbine: 22 Spline
• Bosses/Mounting: 6 Pad Mounting .385 in. Tall
• Factory Code(s): U760E
• Mounting Holes Distance: 9.25 in. Bolt Circle
• Pilot to Engine: 1.275 in. Pilot
• TAG ID: ID CODE: P, U760E, 06051C, 33140, 33141, 141010
• Interchange part numbers: LX7, TQLX7
