ATK has honed the reman torque converter operation to optimize a steady outflow of a variety of products by using and adopting standard operating procedures to supply automotive, high-performance, heavy-duty, and industrial converters. This torque converter has been remanufactured for ATK by CVC (Consolidated Vehicle Converters).

If returning a torque converter core, please see the link below for ATK’s standard core return procedure as the customer is responsible for return shipping charges.

Click Here: ATK Torque Converter Core Return Instructions

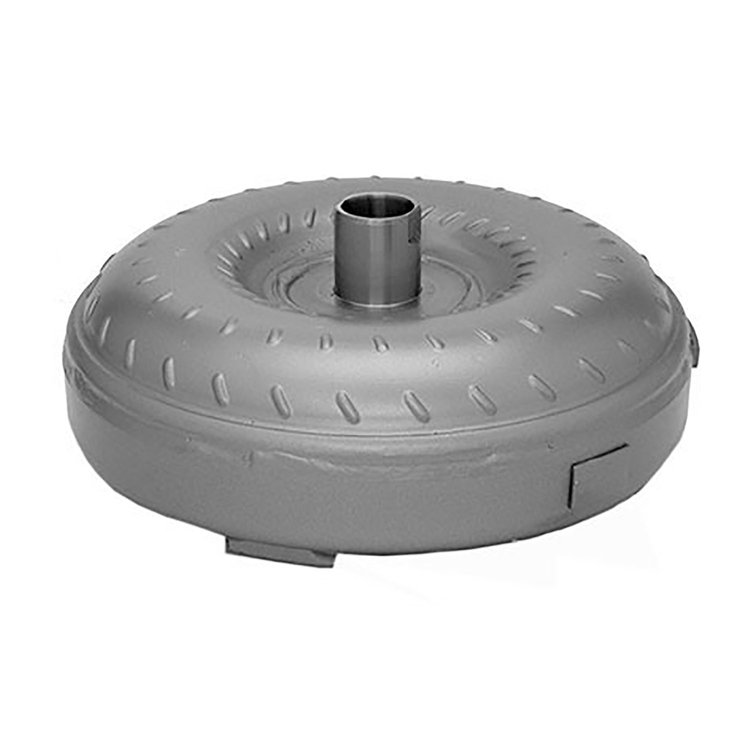

ATK TQOM20HD Features:

• Bosses/Mounting: 4 Pad Mounting, 90º Bolt Pattern
• Note: HD Billet Cover
• TAG ID: ID CODE: 520AA, 520AB, 522AA, 536AC, 539AA, 539AB, 556AA, 556AB, 556AC, 557AC, 593AA
• Pilot to Engine: 1.337 in. Pilot
• Mounting Holes Distance: 9 1/16 in. Bolt Circle
• Factory Code(s): 62TE
• Spline to Turbine: 22 Spline
• OEM Make: Chrysler
• Hub OD: 1.5 in. Flats Hub
• Converter Mount/Diameter: 10.75 in. Diam
• Interchange part numbers: OM20HD, TQOM20HD

  Please CLICK HERE for ATK Warranty
