Vehicle Info NeededAUTO METERPART NUMBER: 105-1113

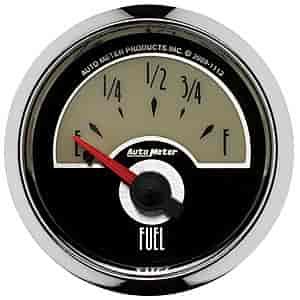

Cruiser Fuel Level Gauge 2-1/16" Electrical
$9399
Ships on 09/08/2026
Lowest Price Guarantee2-1/16" Cruiser Gauges
- Cruiser Fuel Level Gauge
- 2-1/16" Electrical
- 0/90 OHM
- Short Sweep
- Flat Lens
- For Most Chevy/GM 1965 - 97
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Works with most 1965 to 1997 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes mounting hardware and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.8
Package Length4.9
Weight0.51 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorIvory/Black
Bezel ColorChrome
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel FinishChrome
Gauge StyleAuto Meter Cruiser
Gauge Number ColorBlack
Gauge RangeEmpty-full
Sender Ohm Range0 ohms empty, 90 ohms full
Lighting TypeLED
Gauge TypeFuel Level
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Beige
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number1113
Package Qty1
Package TypeEA
