Vehicle Info NeededAUTO METERPART NUMBER: 105-1201

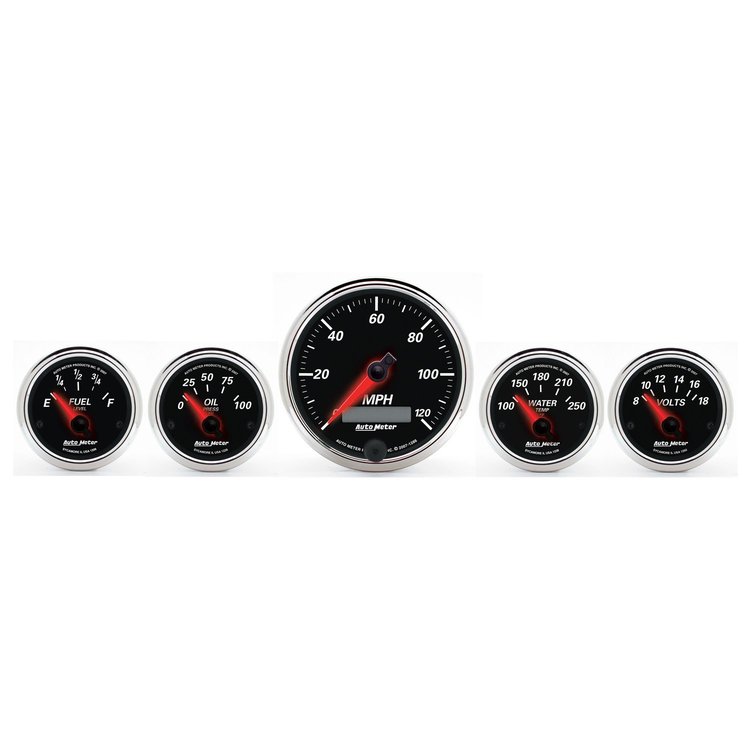

Designer Black II 5-Gauge Kit 3-3/8" Electrical Speedometer (120 mph)
$56099
Ships on 09/09/2026
Lowest Price GuaranteeKit
- Designer Black II 5-Gauge Kit
- 3-3/8'' Electrical Speedometer (120 mph)
- 2-1/16'' Fuel Level (240-33 ohms)
- 2-1/16'' Oil Pressure (0-100 psi)
- 2-1/16'' Water Temperature (100°-250° F)
- 2-1/16'' Voltmeter (8-18 volts)
All gauges in kit are electrical - Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Part TypeGauge
BrandAUTO METER
Package Height5.2
Package Width9.8
Package Length18.1
Weight4.15 PG
Part CategoryPerformance Parts
Warning Lights IncludedNo
Gauge Face ColorBlack
Bezel ColorChrome
SizeN/A
Fuel Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Clock IncludedNo
Brake Bias Gauge IncludedNo
Bezel FinishSilver
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedNo
Gauge StyleAuto Meter Designer Black II
Gauge Number ColorWhite
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Transmission Temperature Gauge IncludedNo
Lighting TypeLED
Bezel StyleStreet Rod
QuantitySold as a kit
Fuel Level Gauge IncludedYes
Dial (Face Color)Black
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedNo
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Speedometer Gauge IncludedYes
Oil Pressure Gauge IncludedYes
Part FitmentSemi Universal
Lighting ColorWhite
Vendor Part Number1201
Package Qty1
Package TypeEA
