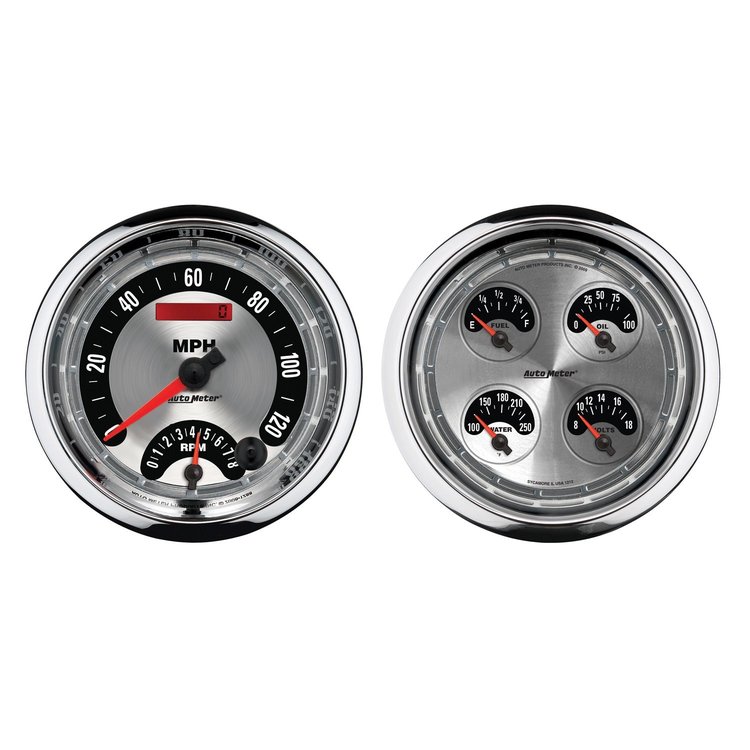

Vehicle Info NeededAmerican Muscle 2-Gauge Kit Speedo/Tach Combo, Programmable Electrical
Size :
Ships on 09/08/2026
Lowest Price Guarantee- American Muscle 2-Gauge Kit
- Speedo/Tach Combo, Programmable Electrical
- 4-in-1 Quad Gauge, Electrical
- 5" Diameter
Notes: - Operates on 4, 6, or 8 cylinder engines with points, electronic, and most 12V high performance racing ignitions.
- Includes all gauges senders, including 7/8-18 speedometer sender.
- Resettable Trip odometer.
- Will work with most factory sensors. If sender may be required, see model 5291 or 5292 in Accessories Section.
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Tachometer is compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
Direct-Fit Gauge Packages
American Muscle Gauges feature advanced hybrid dial technology, combining Auto Meter's signature white Hi-Def LED illumination & glowing red pointers with spun aluminum dials and embossed detail. These direct-fit gauge and dash kits feature a chrome bezel finish. American Muscle instruments are offered 2-1/16 in. for fuel level, oil pressure, water temperature, battery voltage, boost/vacuum, and clock, as well as 3-3/8 in. or 5 in. tachometers and programmable speedometers. Quad gauges and kits also available.
