Vehicle Info NeededAUTO METERPART NUMBER: 105-1210

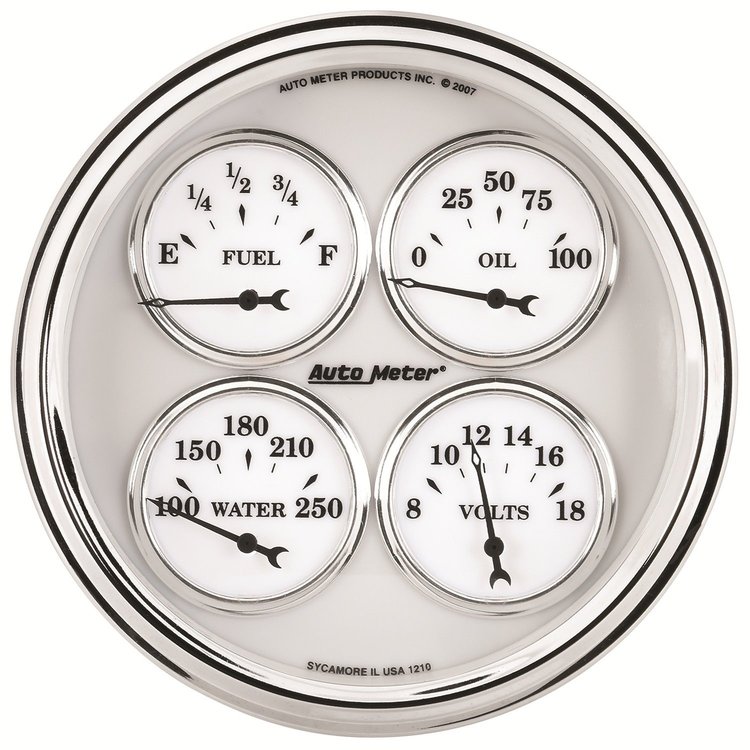

Old Tyme White II Quad Gauge 5" Electrical
Size :
$27135
Ships on 09/08/2026
Lowest Price Guarantee5"
- Old Tyme White II Quad Gauge
- 5'' Electrical
- Fuel Level (240-33 ohms)
- Oil Pressure (0-100 psi)
- Water Temperature (100°-250° F)
- Voltmeter (8-18 volts)
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
- Domed lenses
- Chrome bezels
- Full-dial white LED illumination
- Black vintage-style pointers and numbers
- Race-proven movement provides accurate readings
Classic Looks with Crisp, White Lighting for Cruising
Old Tyme White II Gauges combine the award-winning design of Auto Meter's original Old Tyme Series with unique high-intensity illumination.
FeaturesPart TypeGauge
Product LineAuto Meter Old Tyme White II Gauges
BrandAUTO METER
Package Height5.7
Package Width6.5
Package Length6.5
Weight1.7 PG
Part CategoryPerformance Parts
Warning Lights IncludedNo
Gauge Face ColorWhite
Bezel ColorChrome
Size5 in (127 mm)
Fuel Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Clock IncludedNo
Brake Bias Gauge IncludedNo
Bezel FinishChrome
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedNo
Gauge StyleAuto Meter Old Tyme White
Gauge Number ColorBlack
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Transmission Temperature Gauge IncludedNo
Lighting TypeLED
Bezel StyleStreet Rod
QuantitySold individually
Fuel Level Gauge IncludedNo
Dial (Face Color)White
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedNo
Pointer ColorBlack
Gauge SeriesAnalog
Speedometer Gauge IncludedNo
Oil Pressure Gauge IncludedYes
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number1210
Package Qty1
Package TypeEA
