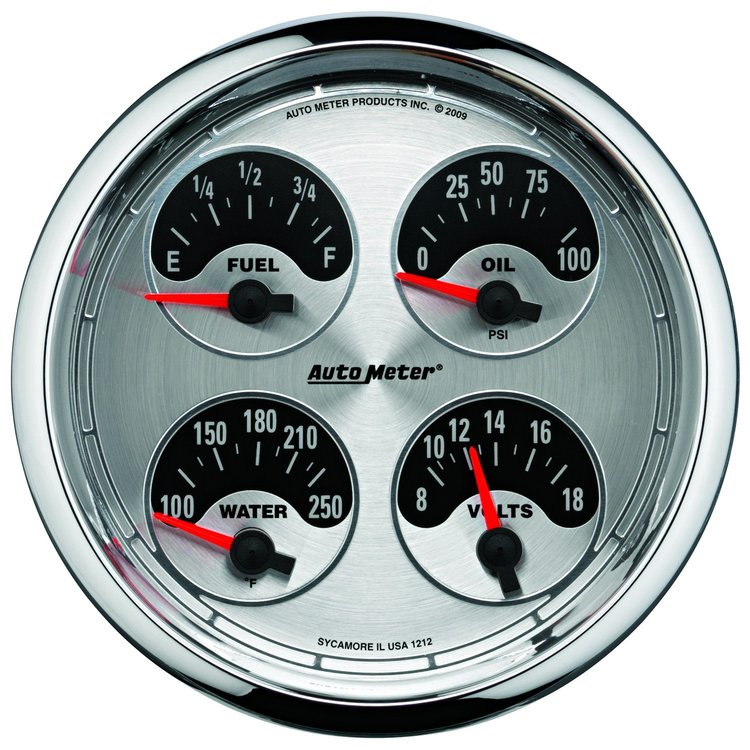

Vehicle Info NeededAmerican Muscle Quad Gauge 5" Electrical
Size :
Ships on 09/08/2026
Lowest Price Guarantee- American Muscle Quad Gauge
- 5" Electrical
- Fuel Level (0-90 ohms)
- Oil Pressure (0-100 psi)
- Water Temperature (100°-250° F)
- Voltmeter (8-18 volts)
Includes 3/8", 1/4", and 1/2" NPT adapters/fittings - Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60"s through mid 90"s GM fuel level senders).
Direct-Fit Gauge Packages
American Muscle Gauges feature advanced hybrid dial technology, combining Auto Meter's signature white Hi-Def LED illumination & glowing red pointers with spun aluminum dials and embossed detail. These direct-fit gauge and dash kits feature a chrome bezel finish. American Muscle instruments are offered 2-1/16 in. for fuel level, oil pressure, water temperature, battery voltage, boost/vacuum, and clock, as well as 3-3/8 in. or 5 in. tachometers and programmable speedometers. Quad gauges and kits also available.
